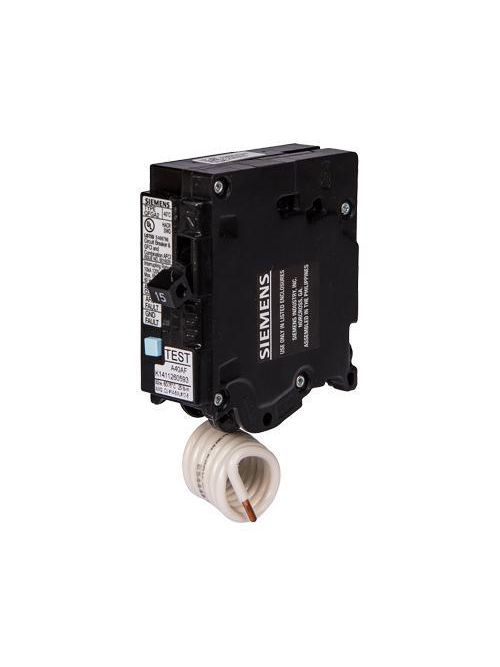

S-A MP120DFP BK MP-GAT2 AFCI/GFCI 1
$85.50/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MP120DFP
North Coast Part # 1165470

Features

  • Faster installation compared to installing an AFCI breaker and GFI receptacle
  • Lower cost compared to AFCI breaker and GFCI receptacle
  • Self-test feature as required by UL 943 effective June 2015
  • Siemens exclusive LED trip indicator pinpoints cause of trip
  • HACR, SWD, 120 Volt AC rated
  • Wire range: #14-#8 AWG Copper or #12-#8 AWG aluminum

Specifications

  • Standard: UL
  • Continuous current rated value: 20 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PERSONEL / PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 1
  • Design of the product: MP-GAT2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 88762181729
GTiN 00887621817299
Length 1 in
Width 6.000
Voltage 120 Volt
Type MP-GAT2
Applications PERSONEL/PARALLELANDSERIESARCINGPROTECTION
Height 6.5 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 1 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
