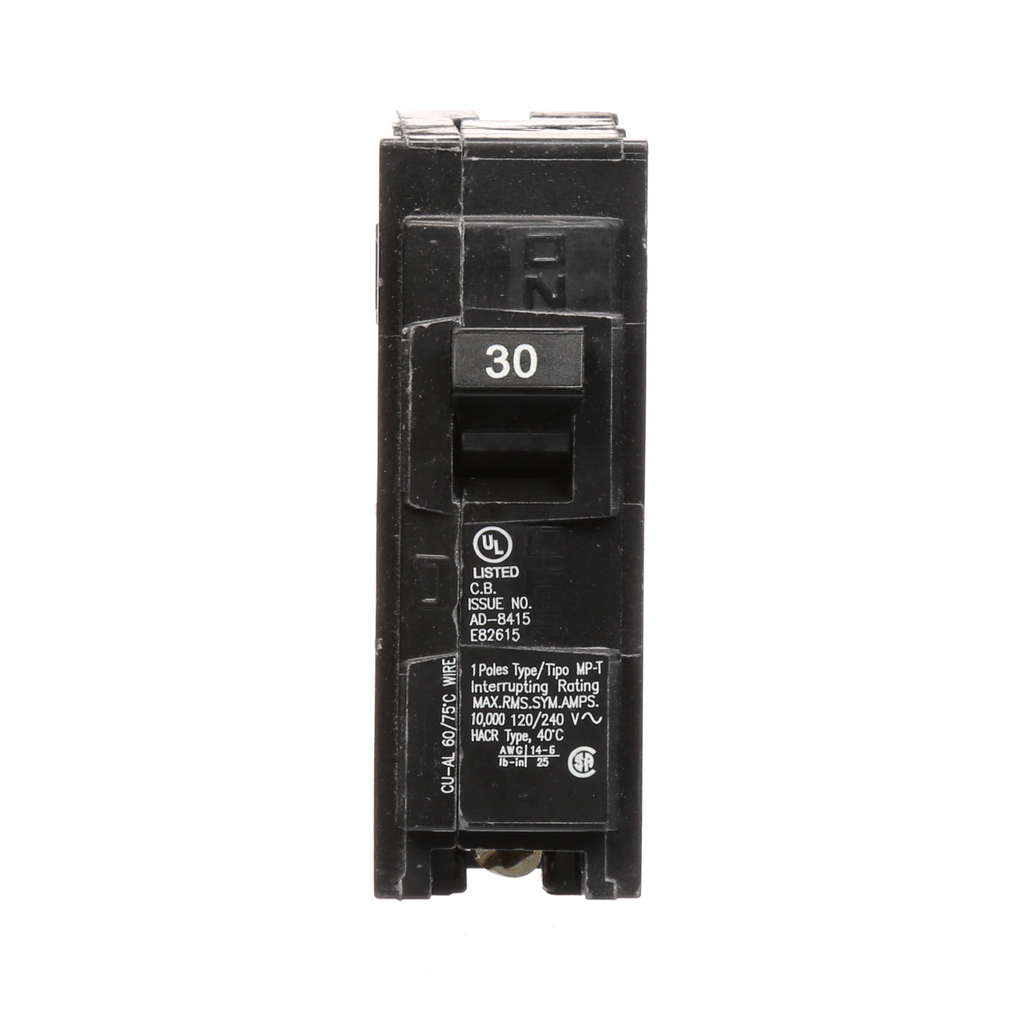

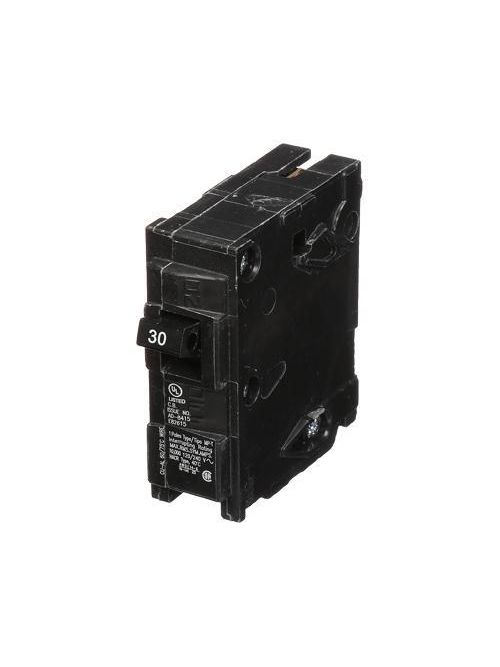

Siemens MP130 1-Pole 120 VAC 30 Amp 10 kA Plug-In Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$8.51/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MP130
North Coast Part # 64113

Features

  • Single pole, 30 Amp, 120-Volt type MP circuit breaker
  • 10,000 AIC interrupting rating
  • Murray type MP circuit breakers provide easy plug-in connections in Murray enclosures and the time saving insta-wire feature
  • Compatible with Murray rock solid load centers
  • Use for overload and short-circuit protection of your electrical system
  • Thermal-magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: MP-T
  • Size of the circuit-breaker: MP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 1 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 6AWG (CU) / 12 - 6AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 04089251891
GTiN 00040892518917
Width 1 in
Operating Temperature 40 DEG C
Voltage 120 Volt
Type MP-T
Depth 3 in
Height 2.87 in
Family Brand Name Siemens
Number of Poles 1 Pole
Interrupt Rating 10 kA
Length 3 in
Conductor Size 14-6AWG(CU)/12-6AWG(AL)
Applications ELECTRICALDISTRIBUTION
Frame MP(125A)
TC Connection PLUG-IN
Trip Type THERMAL-MAGNETIC
