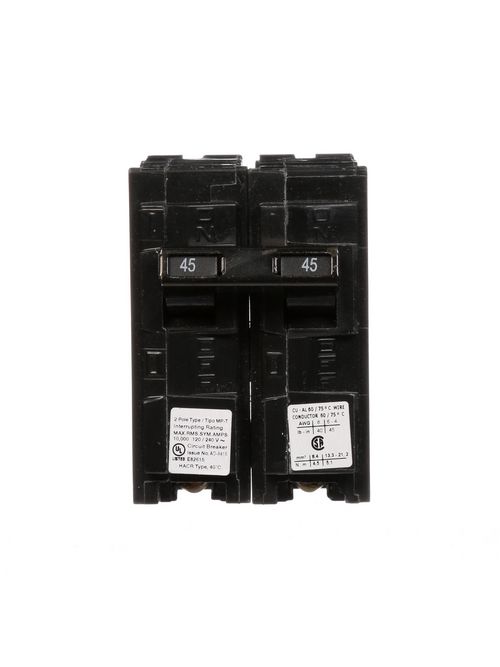

Siemens MP245 2-Pole 120/240 VAC 45 Amp 10 kA Plug-In Common Trip Circuit Breaker
$18.70/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MP245
North Coast Part # 881263

Features

  • 10 KAIC rated
  • 240-Volt
  • UL listed
  • Designed for residential/commercial applications
  • Time saving insta-wire feature
  • Compatible with Murray rock solid load centers
  • Use for overload and short-circuit protection of your electrical system
  • Thermal magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 45 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: MP-T
  • Size of the circuit-breaker: MP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: LOADCENTER

Categories

Overview

UPC 04089251940
GTiN 00040892519402
Width 2 in
Operating Temperature 40 DEG C
Voltage 120/240 Volt
Type MP-T
Depth 3 in
Height 2.87 in
Family Brand Name Siemens
Number of Poles 2 Pole
Interrupt Rating 10 kA
Length 3 in
Conductor Size 8-6AWG(CU)/8-4AWG(AL)
Applications ELECTRICALDISTRIBUTION
Frame MP(125A)
TC Connection PLUG-IN
Trip Type THERMAL-MAGNETIC
