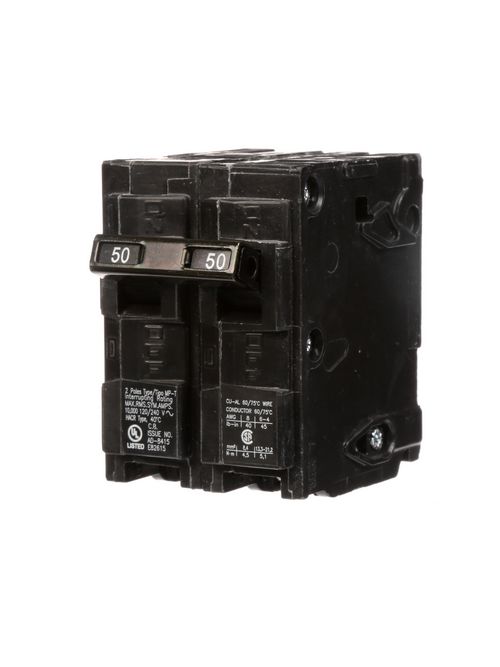

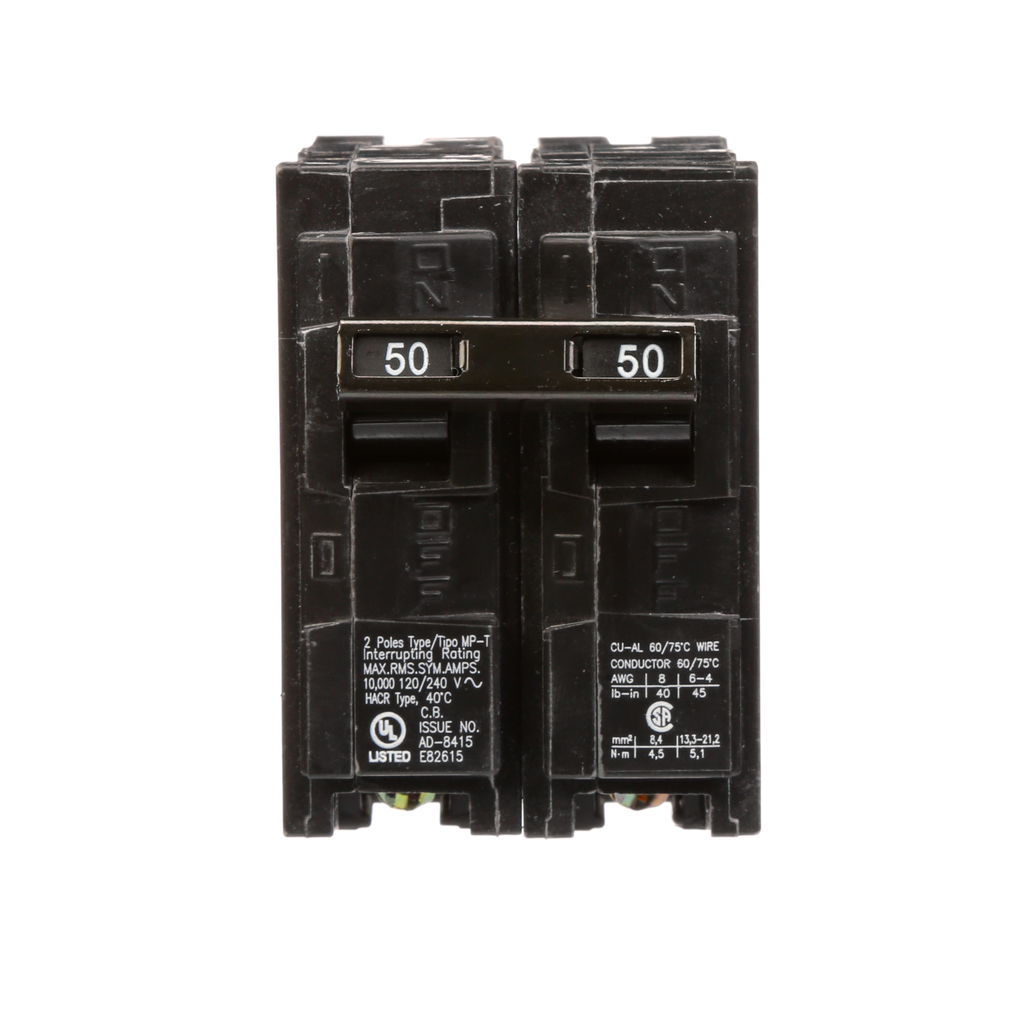

Siemens MP250 2-Pole 120/240 VAC 50 Amp 10 kA Plug-In Common Trip Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$22.44/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MP250
North Coast Part # 64978

Features

  • Double pole, 50 Amp, 240V type MP circuit breaker
  • 10,000 AIC interrupting rating
  • Murray type MP circuit breakers provide easy plug-in connections in Murray enclosures and the time saving insta-wire feature
  • Compatible with Murray rock solid load centers
  • Use for overload and short-circuit protection of your electrical system
  • Thermal-magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 50 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: MP-T
  • Size of the circuit-breaker: MP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 04089251898
Item Long Description Murray offers a wide array of thermal-magnetic circuit breakers that are the key element for overload and short-circuit protection of your homes electrical system. To provide additional protection Murray offers circuit breakers to protect against severe electrical shock or electrocution, mitigate the risk of electrical fires and protect against damaging surges and Voltage spikes. Circuit breakers are intended for switching and protection of your home's wiring from high temperatures caused by excess current higher than the rating of the wire. While thermal-magnetic circuit breakers are the key element for overload and short-circuit protection of your electrical system, there are potentially dangerous conditions that do not involve over current.
GTiN 00040892518986
Width 2 in
Operating Temperature 40 DEG C
Voltage 120/240 Volt
Type MP-T
Depth 3 in
Height 2.87 in
Family Brand Name Siemens
Number of Poles 2 Pole
Interrupt Rating 10 kA
Length 3 in
Conductor Size 8-6AWG(CU)/8-4AWG(AL)
Applications ELECTRICALDISTRIBUTION
Frame MP(125A)
TC Connection PLUG-IN
Trip Type THERMAL-MAGNETIC
