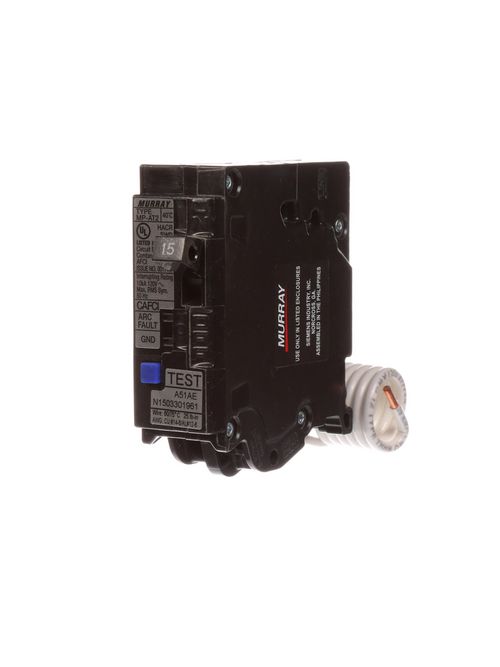

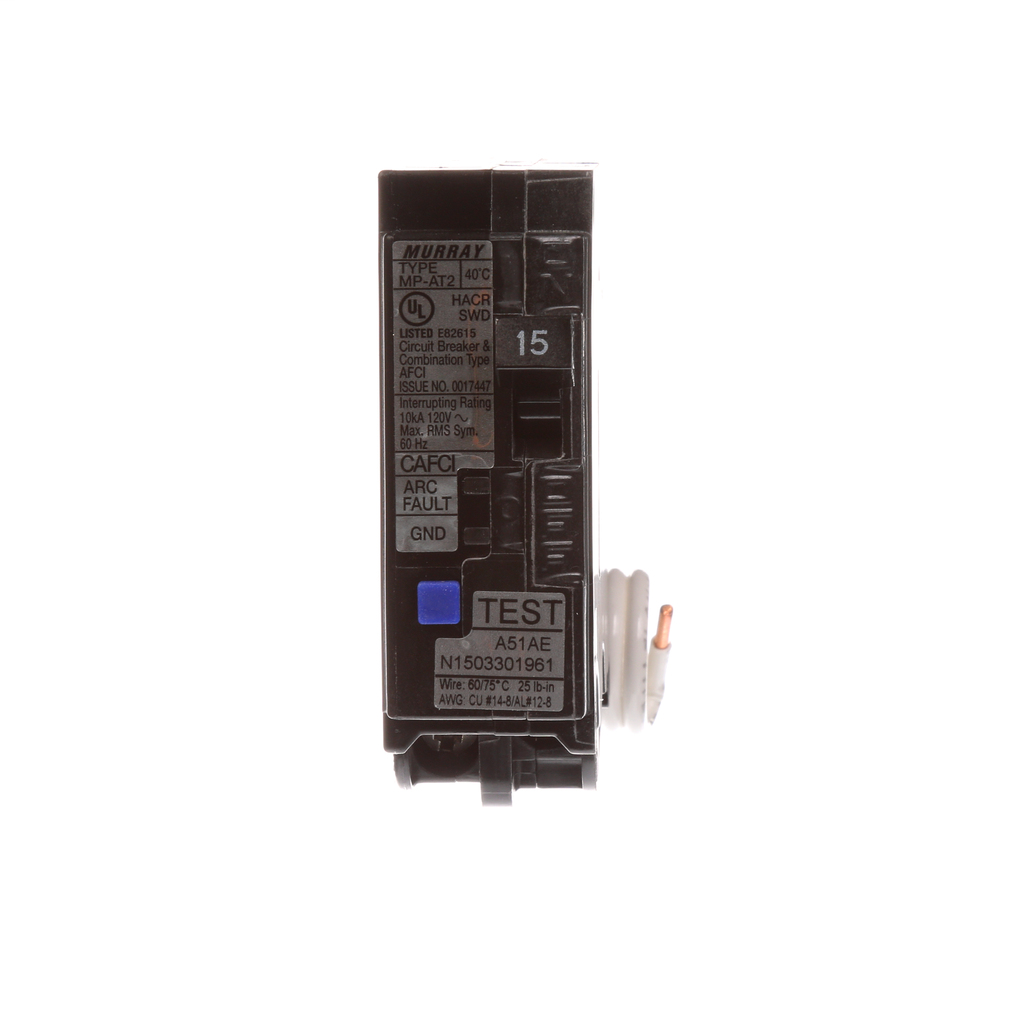

S-A MPA115AFCP BRKR MP-AT2 AFCI 1P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$73.61/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MPA115AFCP
North Coast Part # 1165483

Features

  • 1/4 in. more wiring bend space than the previous design
  • LED trip indicators
  • Both lugs at the same angle for easier wiring
  • 120 VAC and available with interrupting rating of 10kA, 22kA, or 65kA
  • Plug-In branch circuit breakers for Murray single phase load centers
  • Bolt-on branch circuit breakers for Siemens panelboards
  • Wire range: #14 - #8 AWG Cu #12 - #8 AWG Al
  • Torque rating: 25 lb. in.
  • UL listed

Specifications

  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 1
  • Design of the product: MP-AT2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 88762121608
GTiN 00887621216085
Length 1.2 in
Width 3.100
Voltage 120 Volt
Type MP-AT2
Applications PARALLELANDSERIESARCINGPROTECTION
Height 4.4 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 1 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
