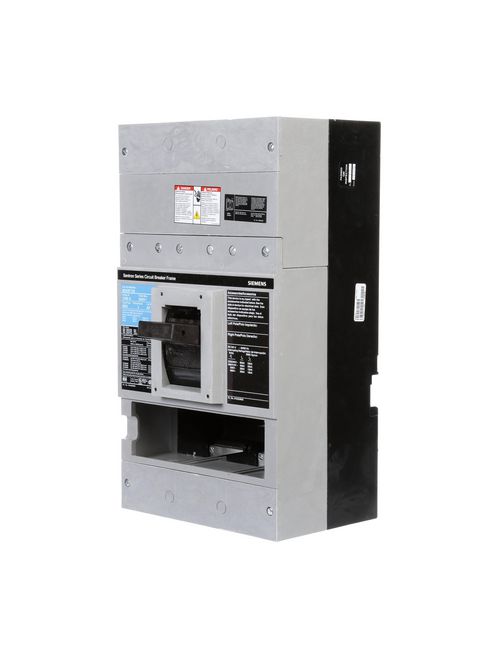

Siemens Ca ND63B120 ND MCCB,25kA@60
$36,336.38/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # ND63B120
North Coast Part # 550863
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1200A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.

Categories

Overview

UPC 78364321541
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1200A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
GTiN 00783643215412
Length 14 in
Width 10 in
Operating Temperature 40 C
Voltage 500 Volt
Type ND6
Applications Standard 40C Breaker
Height 27 in
Standard UL,HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame ND
Actuator Varying
Amperage 1200 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Enclosure Varying
Trip Range 5000-10000
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
