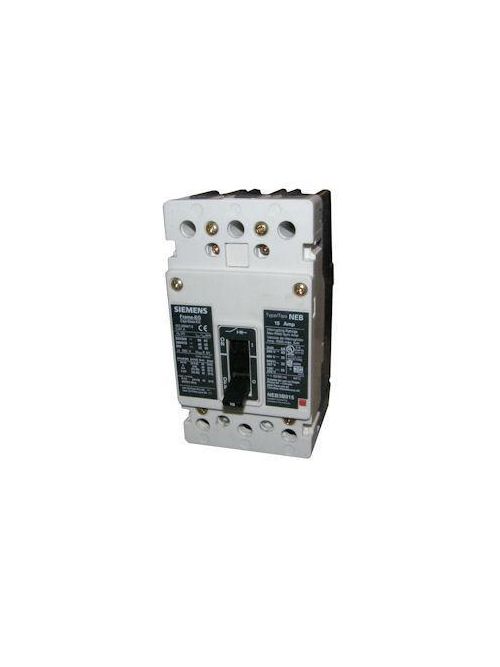

Siemens Industry NEB3B020B 3-Pole 480 VAC 20 Amp 35 kA Panelboard Mount Thermal Magnetic Molded Case Circuit Breaker

UPC	78364355851
Item Long Description	SIEMENS LOW VOLTAGE PANELBOARD MOUNT EG FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NEB FRAME WITH STANDARD BREAKING CAPACITY. 20A 3-POLE (22KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOADSIDE LUGS ONLY (TA1EG10) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D)IN 3 x 5.5 x 3.
GTiN	00783643558519
Voltage	480 Volt
Type	NEB
Applications	GLOBAL INTERCHANGEABLE
Frequency	50/60 Hz
Family Brand Name	Siemens
Amperage	20 Amp
Trip Type	Regular
Number of Poles	3 Pole
Interrupt Rating	35 kA
Sub Brand	NEB
