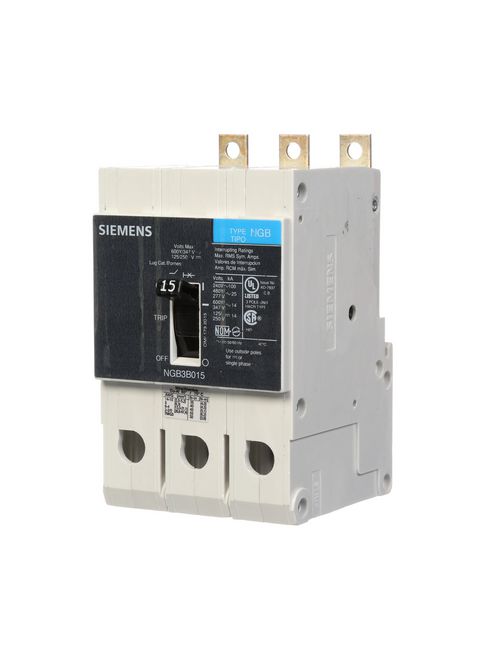

Siemens Industry NGB3B015B 3-Pole 15 Amp 600 Volt 14 kA Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,516.26/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # NGB3B015B
North Coast Part # 344770

Categories

Overview

UPC 78364341425
Item Long Description SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 15A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
GTiN 00783643414259
Length 6.900
Width 4.800
Operating Temperature 40DEGC
Voltage 347 Volt
Type NGB
Applications For Industrial
Height 4.1 in
Frequency 50/60 Hz
Family Brand Name Siemens
TC Connection Load Lugs
Amperage 15 Amp
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 14 kA
Sub Brand NGB
Temperature Rating 40 C
Blade Dimensions 6.9 in L x 4.8 in W x 4.1 in H
