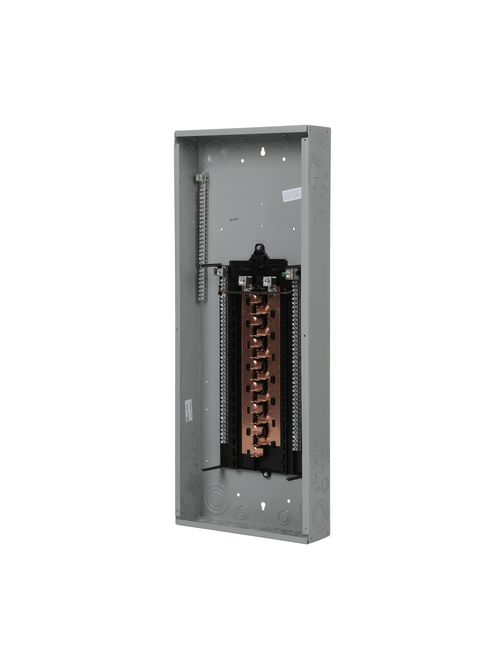

Siemens Industry P3054L1200CU 120/240 VAC 200 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Convertible Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$207.60/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # P3054L1200CU
North Coast Part # 752488

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Configuration of the busbars: COPPER BUS
  • Phase number: 1
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 54
  • Design of the housing: TYPE 1
  • Number of width units for installation width: 30
  • Product brand name: SIEMENS
  • Product type designation: PL SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 100000 A

Overview

UPC 04089265049
GTiN 00040892650495
Size 14-1/2 IN Width X 3-7/8 IN Depth X 36 IN Height
Voltage 120/240 Volt
Type PLSERIESASSEMBLEDLOADCENTER
Material Copper
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Circuit Breaker Type MBK150A Or MBK200A Field Installed
Number of Phases 1 Phase
Amperage 200 Amp
Enclosure TYPE1
Sub Brand UL
Number of Spaces 30
Bus Rating COPPERBUS
Interrupt Rating 100000 A
