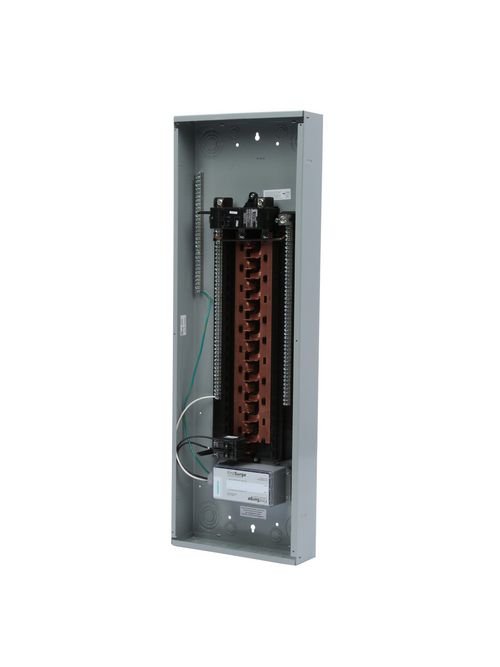

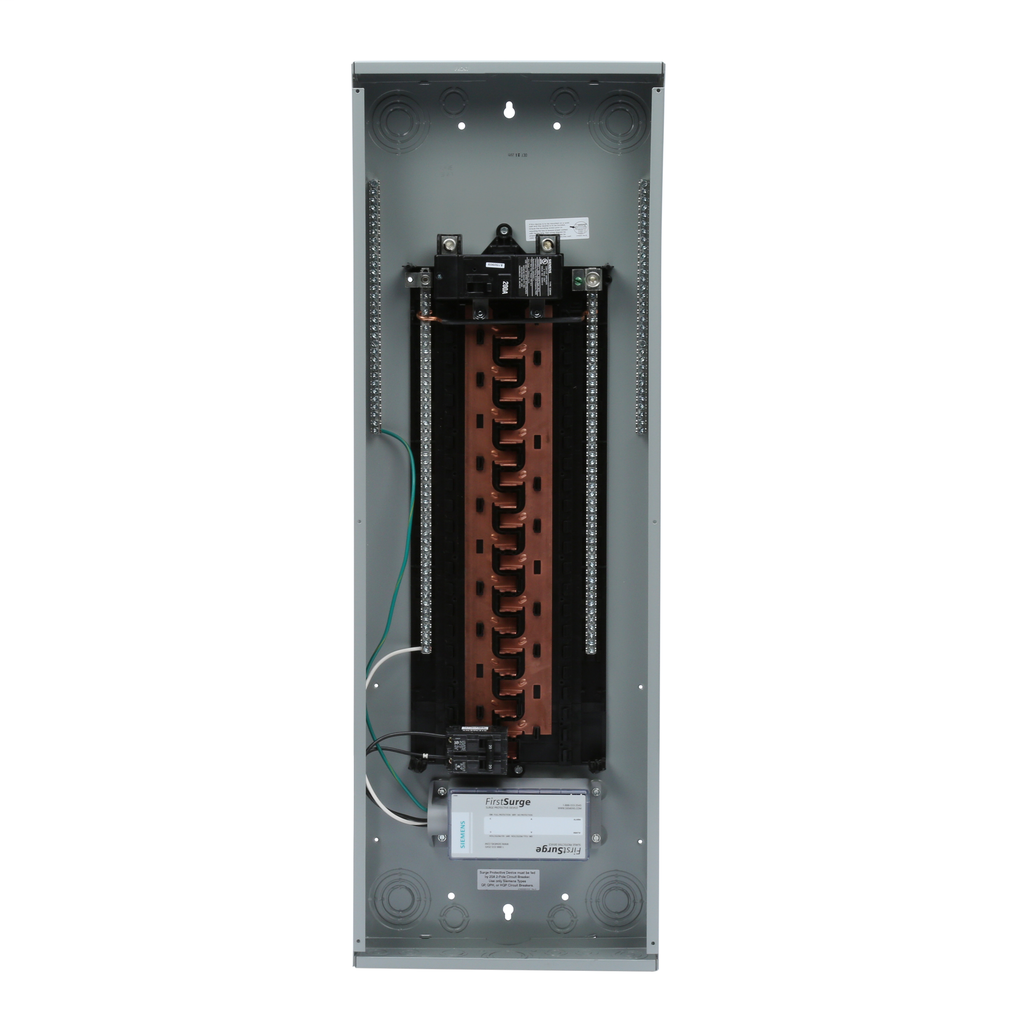

S-A P4060B1200S140 PL LC MB 40S/60C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,017.41/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # P4060B1200S140
North Coast Part # 1167505

Features

  • PL series panel includes a FirstSurge whole home surge protection device (FS140) factory installed
  • FS140 commercial quality surge protective device that has both audible and visual status alerts comes pre-installed
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Copper bus
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • All PL series devices convertible from main lug to main breaker and vice versa
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Configuration of the busbars: ALUMINUM BUS
  • Phase number: 1
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 60
  • Design of the housing: TYPE 1
  • Size of the circuit-breaker: 200A
  • Number of width units for installation width: 40
  • Product brand name: SIEMENS
  • Product type designation: PL SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM/ FIRST SURGE 140KA SURGE
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 22000 A

Overview

UPC 80476605794
Item Long Description Siemens introduces PL series load centers a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim these features were specifically engineered to decrease installation time and increase flexibility.
GTiN 00804766057946
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 200 Amp
Type PLSERIESASSEMBLEDLOADCENTER
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Circuit Breaker Type 200A
Number of Spaces 40
Bus Rating ALUMINUMBUS
Interrupt Rating 22000 A
Enclosure TYPE1
Sub Brand UL
