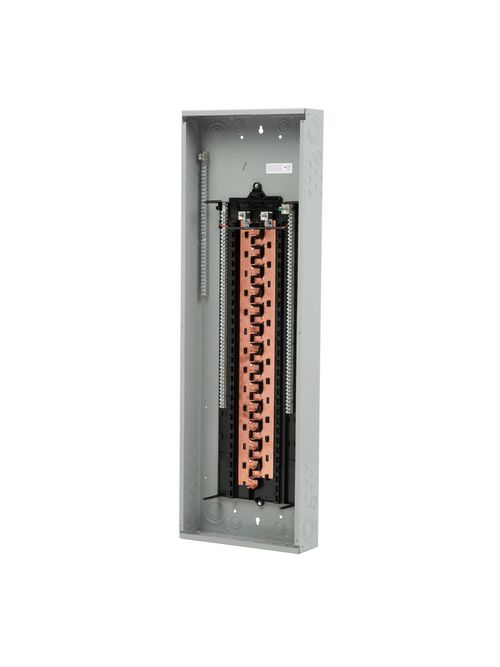

Siemens P5470L1225CU 120/240 VAC 225 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Convertible Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$594.52/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # P5470L1225CU
North Coast Part # 759168

Features

  • Single phase 225 Amp main lug load center with 54-spaces/70-circuits
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Copper bus
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • All PL series devices convertible from main lug to main breaker and vice versa
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Accepts Siemens type QP, QPH, and HQP plug in circuit breakers

Specifications

  • Certificate of suitability: UL
  • Ampacity: 225 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Configuration of the busbars: COPPER BUS
  • Phase number: 1
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 70
  • Design of the housing: TYPE 1
  • Number of width units for installation width: 54
  • Product brand name: SIEMENS
  • Product type designation: PL SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 100000 A

Overview

UPC 04089265062
GTiN 00040892650624
Size 4266.5
Voltage 120/240 Volt
Type PLSERIESASSEMBLEDLOADCENTER
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 225 Amp
Cover Type PL Series
Number of Spaces 54
Bus Rating COPPERBUS
Interrupt Rating 22000 A
Enclosure TYPE1
Sub Brand UL
Cable Size N/A
Circuit Breaker Type N/A
