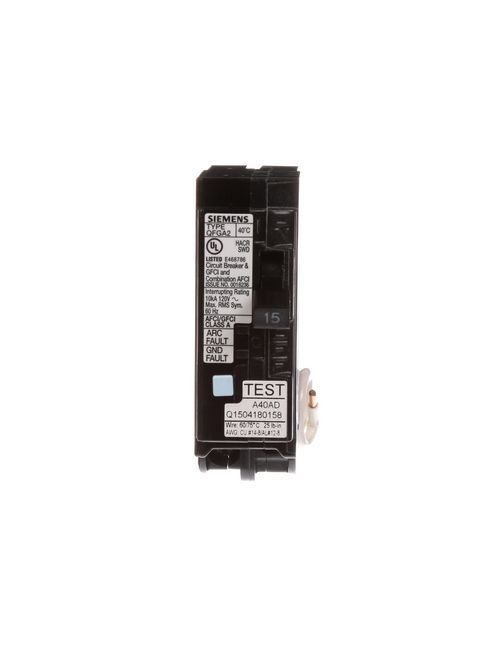

Siemens Industry Q115DF 1-Pole 15 Amp 120 VAC 10 kA Dual Function Arc Fault/Ground Fault Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$90.01/ea
In Stock | 622 available at 28 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q115DF
North Coast Part # 1015183

Specifications

  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PERSONEL / PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 1
  • Design of the product: QFGA2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER
> View Substitutes (1)

Overview

UPC 88762181730
GTiN 00887621817305
Length 1 in
Width 3.000
Voltage 120 Volt
Type QFGA2
Applications Electrical Distribution
Height 4.5 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 1 in L x 3 in W x 4-1/2 in H
Trip Type Thermal Magnetic
Number of Poles 1 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
