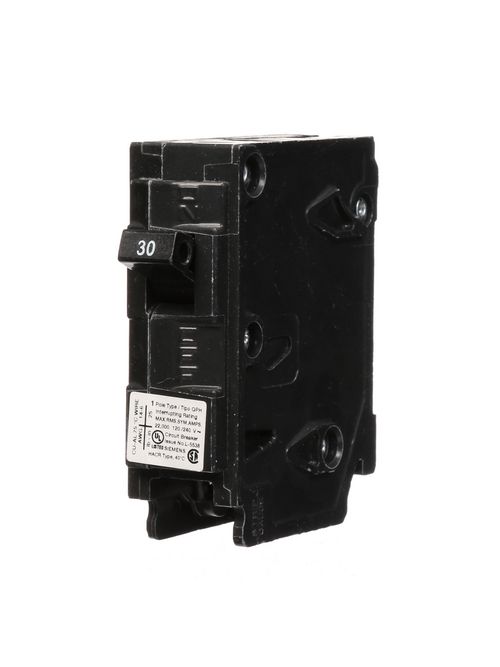

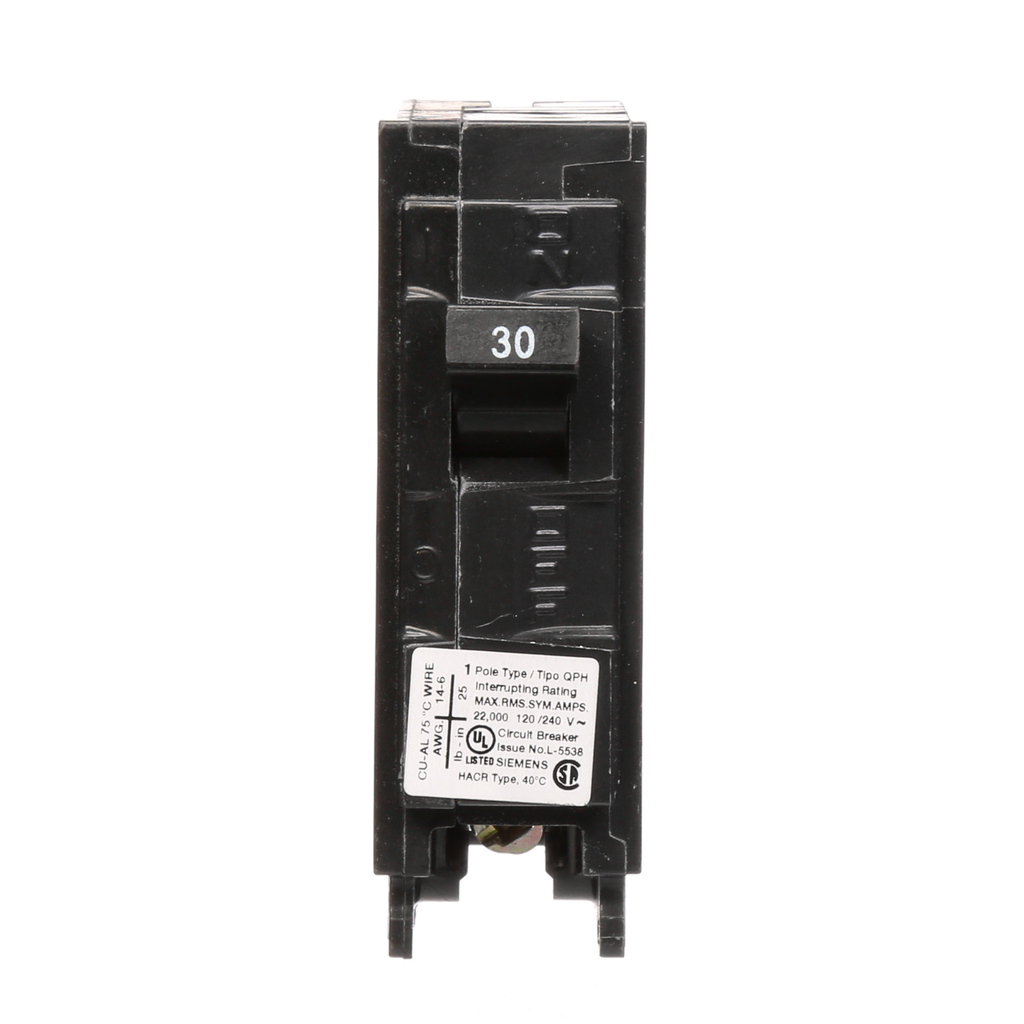

Siemens Industry Q130H 1-Pole 30 Amp 120 VAC 22 kA Plug-In Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$35.75/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q130H
North Coast Part # 754503

Features

  • 22 kA interrupting rating
  • Siemens type QPH circuit breakers provide easy plug-in connections in Siemens enclosures
  • Compatible with Siemens PL and ES series load centers
  • Use for overload and short circuit protection of your electrical system
  • Thermal magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: QPH
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 1 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 6AWG (CU) / 12 - 6AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364315633
Item Long Description Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic overcurrent protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit. Siemens QP breakers provide easy plug-in connections in Siemens enclosures and the time saving Insta-Wire feature. Siemens offers three AIC ratings for these breakers: QP at 10K AIC, QPH at 22K AIC and HQP at 65 K AIC.
GTiN 00783643156333
Length 3 in
Width 1 in
Voltage 120 Volt
Type QPH
Applications ELECTRICALDISTRIBUTION
Depth 3 in
Height 2.87 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 1 Pole
Interrupt Rating 22 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-6AWG(CU)/12-6AWG(AL)
