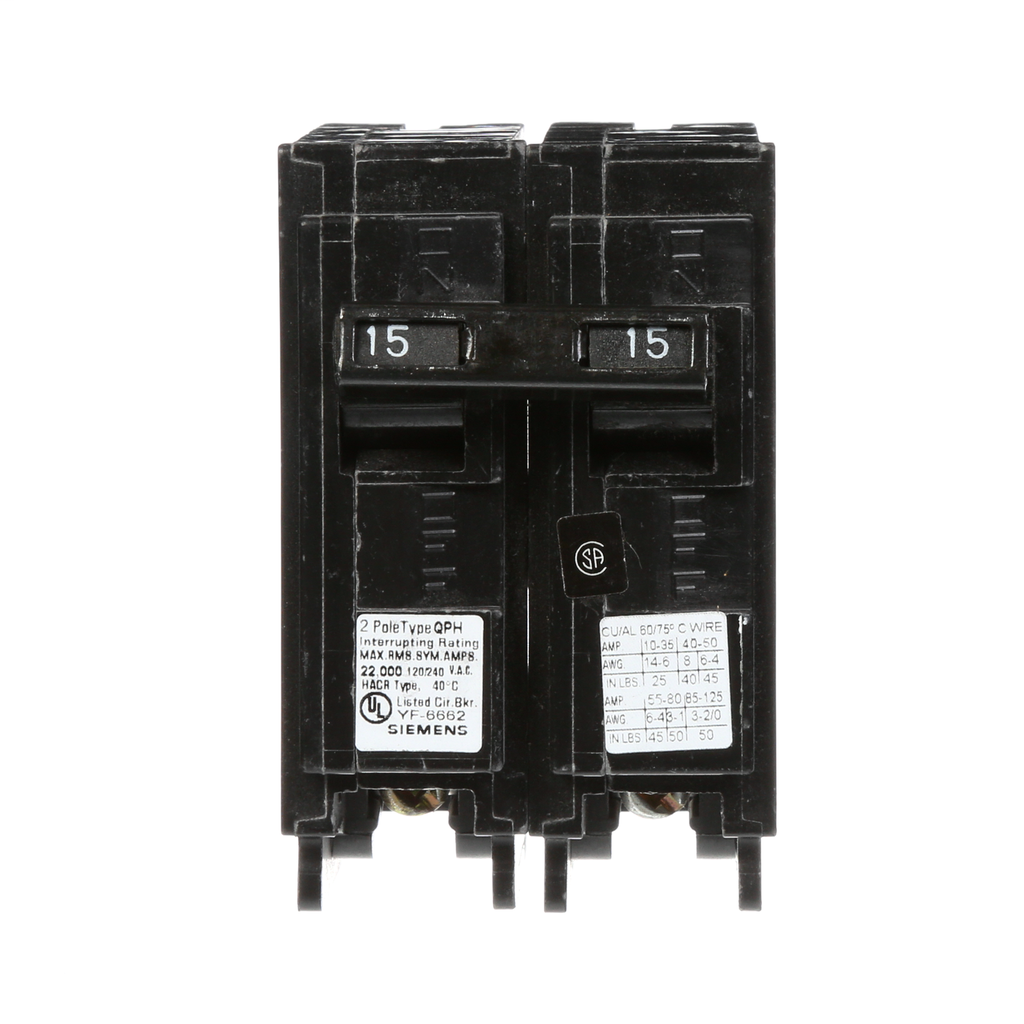

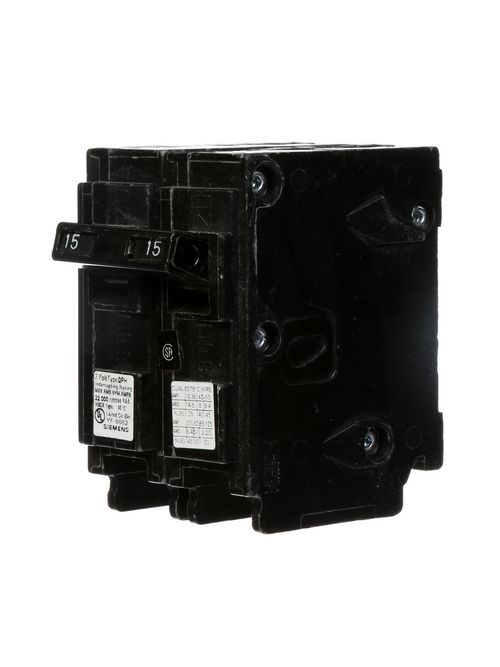

Siemens Industry Q215 2-Pole 15 Amp 120/240 VAC 10 kA Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$16.60/ea
In Stock | 1674 available at 34 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q215
North Coast Part # 10135

Specifications

  • Type: QP/MP
  • Phase: -99999
  • Width: 3 inch
  • Height: 2 inch
  • Length: 3 inch
  • Standard: UL 489
  • Enclosure: -99999
  • Number of Poles: 2
  • Trip Range: -99999
  • Amperage Rating: 15
  • Brand Name: SIEMENS
  • Connection: PLUG-IN
  • Load Rating: -99999
  • Frequency Rating: -99999
  • Operating Temperature: -99999
  • Voltage Rating: -99999 / -99999
  • Application: Electrical Distribution

Overview

UPC 78364314835
Item Long Description Molded case circuit plug-in breakers for panelboard mounting with insta-wire in 3 types of tripping speed Q=10KA, QH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 208Yvac.
GTiN 00783643148352
Length 3 in
Width 3 in
Voltage 120/240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 2 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 3 in L x 3 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-12AWG(CU)/12-10AWG(AL)
Amperage 15 Amp
