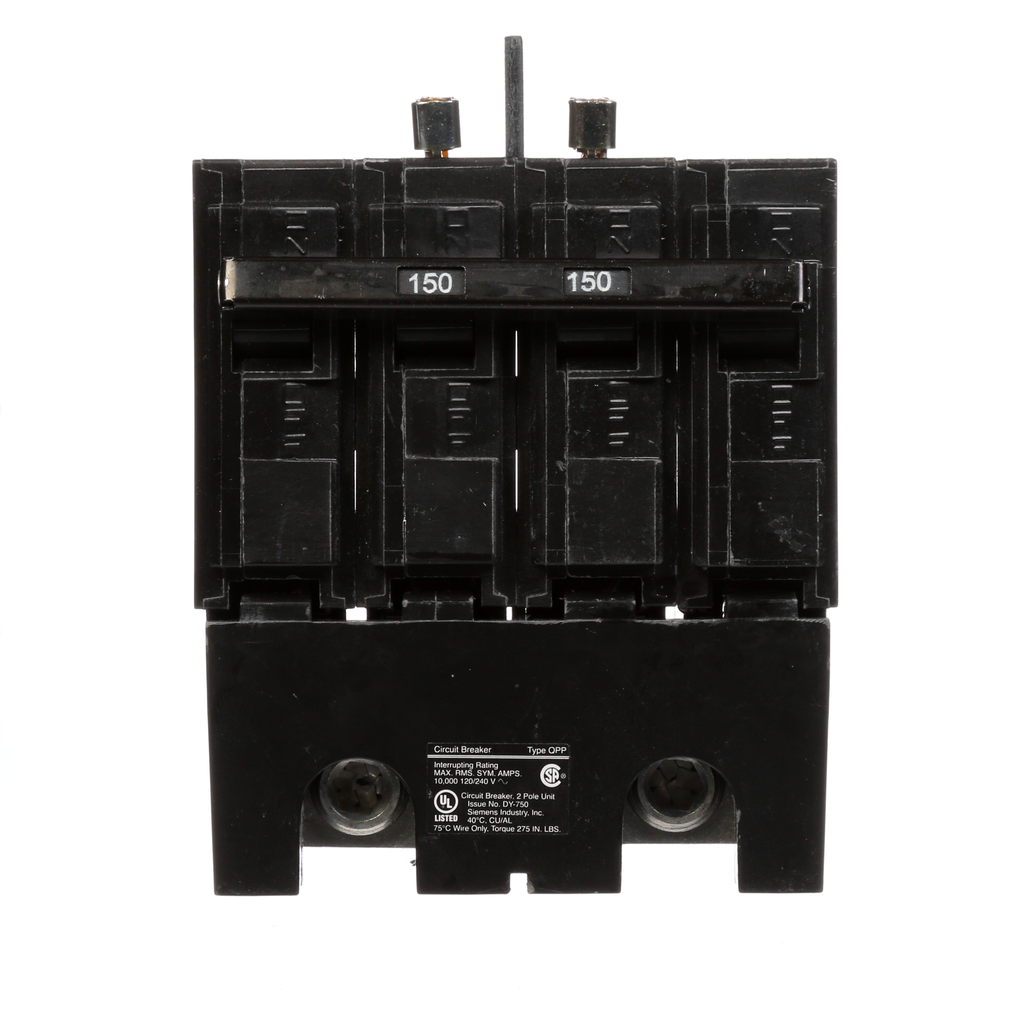

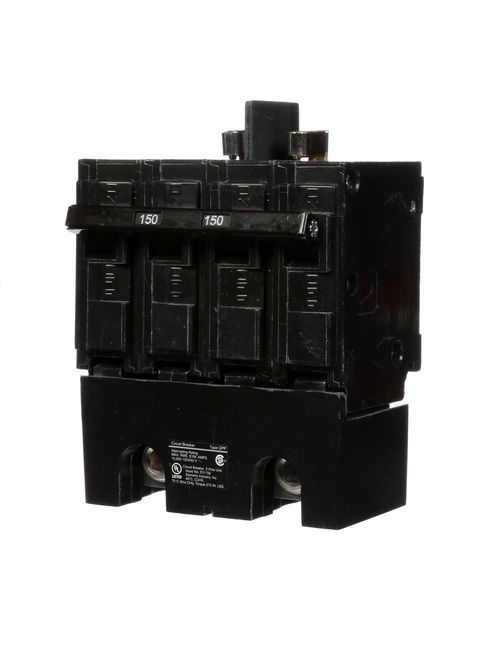

Siemens Industry Q2150B 2-Pole 120/240 VAC 150 Amp 10 kA Common Trip Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$230.55/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q2150B
North Coast Part # 219391

Features

  • 10 KAIC rated
  • 120/240 VAC
  • For use in multi-family metering products
  • UL listed
  • Time saving insta-wire feature

Specifications

  • Design of the product: QPP
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 2 in
  • Depth [in]: 3 in
  • Width [in]: 3 in
  • Continuous current rated value: 225 A

Categories

Overview

UPC 78364314871
Item Long Description Siemens type QPP, QPPH, and HQPP breakers are intended for use in Siemens panels and multi-family metering products where specified. Check the panel's wiring diagram for acceptance. Designed for residential/commercial applications.
GTiN 00783643148710
Length 3 in
Width 3 in
Voltage 120/240 Volt
Type QPP
Applications For Electrical Distribution
Depth 3 in
Height 2 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 AIC
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QPP
Actuator N/A
Trip Type Thermal Magnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Blade Dimensions 5 in L x 4 in W x 3 in H
