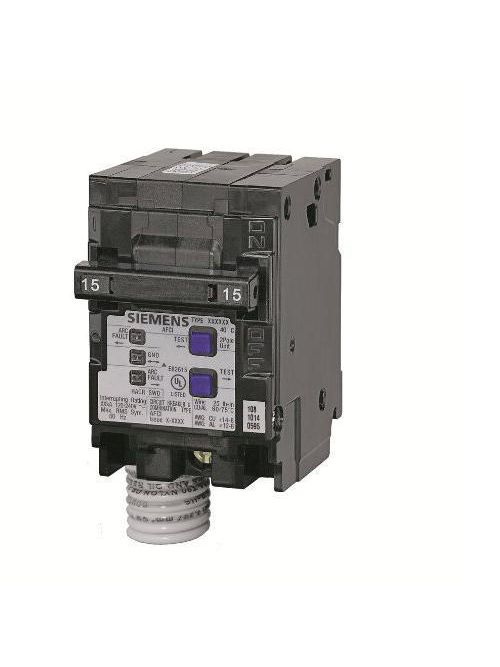

Siemens Q215AFC 2-Pole 15 Amp 120 VAC 10 kA Arc Fault Circuit Interrupter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$162.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q215AFC
North Coast Part # 665174

Features

  • Detects all 3 types of arc faults
  • Use to reduce the risk of electrical fires caused by arc faults
  • 120/240 VAC
  • 10,000 air

Specifications

  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 2
  • Design of the product: QAF2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 04089214888
GTiN 00040892148886
Operating Temperature 40 DEG C
Voltage 120/240 Volt
Type Combination
Temperature Rating 40 C
Family Brand Name Siemens
Number of Poles 2 Pole
Interrupt Rating 10 kA
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
Applications PARALLELANDSERIESARCINGPROTECTION
TC Connection PLUG-IN
Trip Type THERMAL-MAGNETIC
