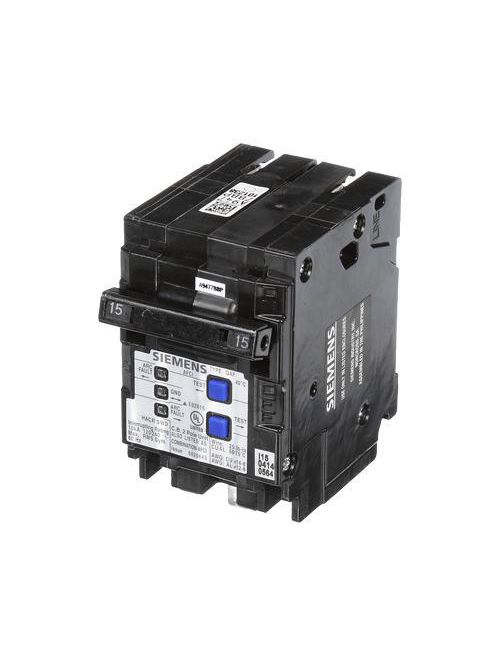

S-A Q215AFCP BRKR QAF2 AFCI 2P 240V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$170.15/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q215AFCP
North Coast Part # 1017955

Features

  • Use to reduce the risk of electrical fires caused by arc faults
  • Detects all 3 types of arc faults
  • 120/240 VAC
  • 10,000 air
  • Suitable for use with 120 VAC fluorescent lighting
  • SWD rated

Specifications

  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 2
  • Design of the product: QAF2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 04089215064
GTiN 00040892150643
Length 3 in
Width 2.000
Voltage 120/240 Volt
Type QAF2
Applications PARALLELANDSERIESARCINGPROTECTION
Height 3 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
Trip Type THERMAL-MAGNETIC
