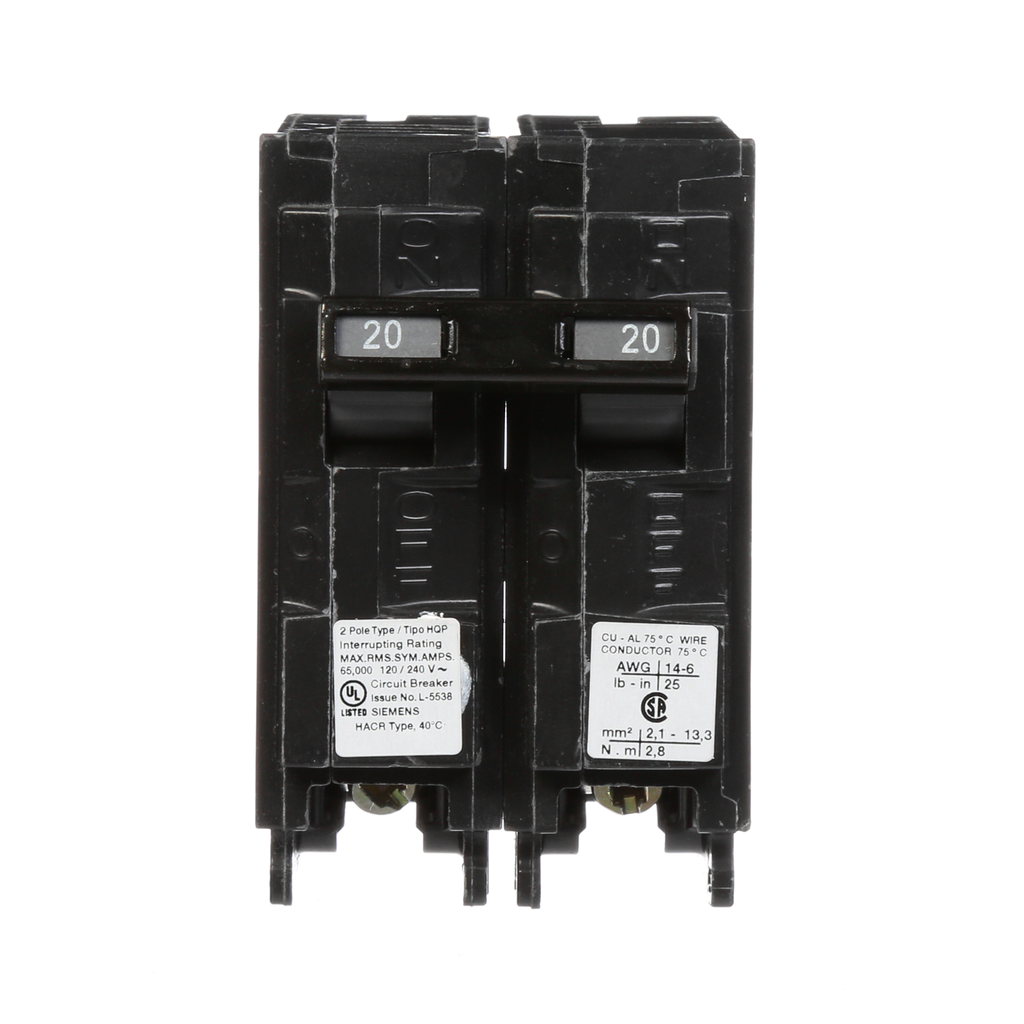

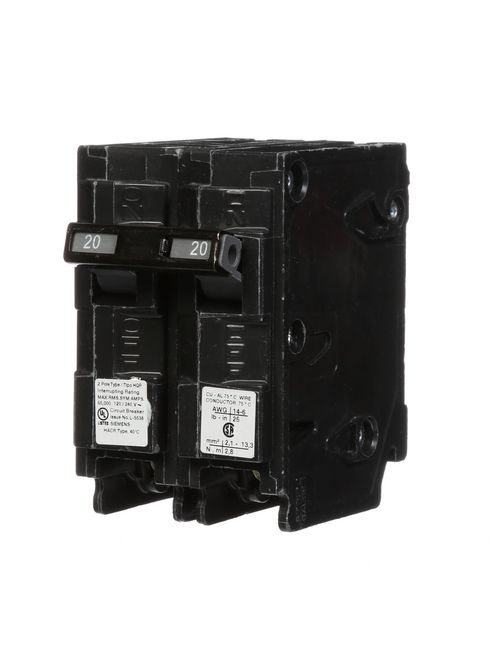

Siemens Industry Q220HH 20 Amp 65 kA 120/240 Volt 2-Pole Type HQP Circuit Breaker

$188.42/ea

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Features

65 kA interrupting rating
Siemens type HQP circuit breakers provide easy plug-in connections in Siemens enclosures
Compatible with Siemens PL and ES series load centers
Use for overload and short circuit protection of your electrical system
Thermal magnetic

Standard: UL LISTED / CSA / NOM CERTIFIED
Continuous current rated value: 20 A
Voltage between phase and Ground (GND) rated value: 120 V
Voltage between phase and phase rated value: 240 V
Supply voltage frequency rated value 50/60 Hz: TRUE
Suitability for operation: ELECTRICAL DISTRIBUTION
Number of poles: 2
Design of the product: HQP
Size of the circuit-breaker: QP (125A)
Design of the overload release: THERMAL - MAGNETIC
Height [in]: 3.12 in
Width [in]: 2 in
Depth [in]: 3 in
Product feature: 65kA INTERRUPT
Type of electrical connection: PLUG-IN
Product brand name: SIEMENS
Type of connectable conductor cross-sections at AWG conductors: 14 - 12AWG (CU) / 12 - 10AWG (AL)
Type of mounting panel: LOADCENTER

UPC	78364314893
Item Long Description	Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic overcurrent protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit. Siemens QP breakers provide easy plug-in connections in Siemens enclosures and the time saving Insta-Wire feature. Siemens offers three AIC ratings for these breakers: QP at 10K AIC, QPH at 22K AIC and HQP at 65 K AIC.
GTiN	00783643148932
Length	3 in
Width	2 in
Voltage	120/240 Volt
Type	HQP
Applications	ELECTRICALDISTRIBUTION
Depth	3 in
Height	3.12 in
Connection Type	Plug-In
Family Brand Name	Siemens
TC Connection	PLUG-IN
Number of Poles	2 Pole
Interrupt Rating	65 A
Trip Range	Thermal Magnetic
Operating Temperature	N/A
Frame	QP(125A)
Actuator	N/A
Trip Type	THERMAL-MAGNETIC
Load Rating	N/A
Enclosure	N/A
Sub Brand	N/A
Conductor Size	14-12AWG(CU)/12-10AWG(AL)
