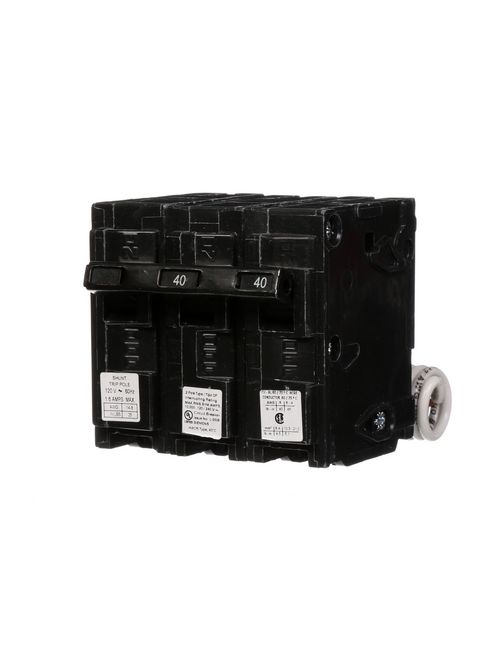

Siemens Industry Q24000S01 2-Pole 40 Amp 120/240 VAC 10 kA 120 Volt Shunt Trip Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$213.07/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q24000S01
North Coast Part # 546355

Features

  • 10K AIC series rating
  • 120-Volt shunt trip allows for externally activated tripping
  • 120/240 VAC
  • Takes up the space of 3 poles
  • UL listed
  • Designed for residential/commercial applications
  • Time saving insta-wire feature

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 40 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

GTiN 00783643237551
Length 3 Inch
Width 3 in
Voltage 120/240 Volt
Type QP
Applications ELECTRICALDISTRIBUTION
Depth 3 in
Height 2 Inch
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 AIC
Trip Range Thermal Magnetic
Product UPC 78364323755
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 8-6AWG(CU)/8-4AWG(AL)
