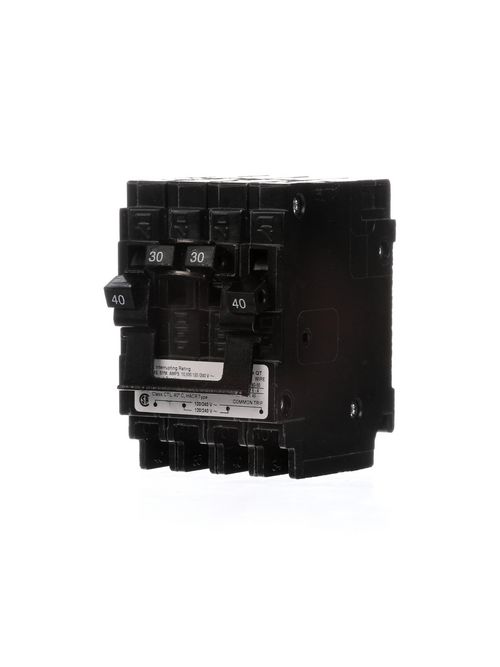

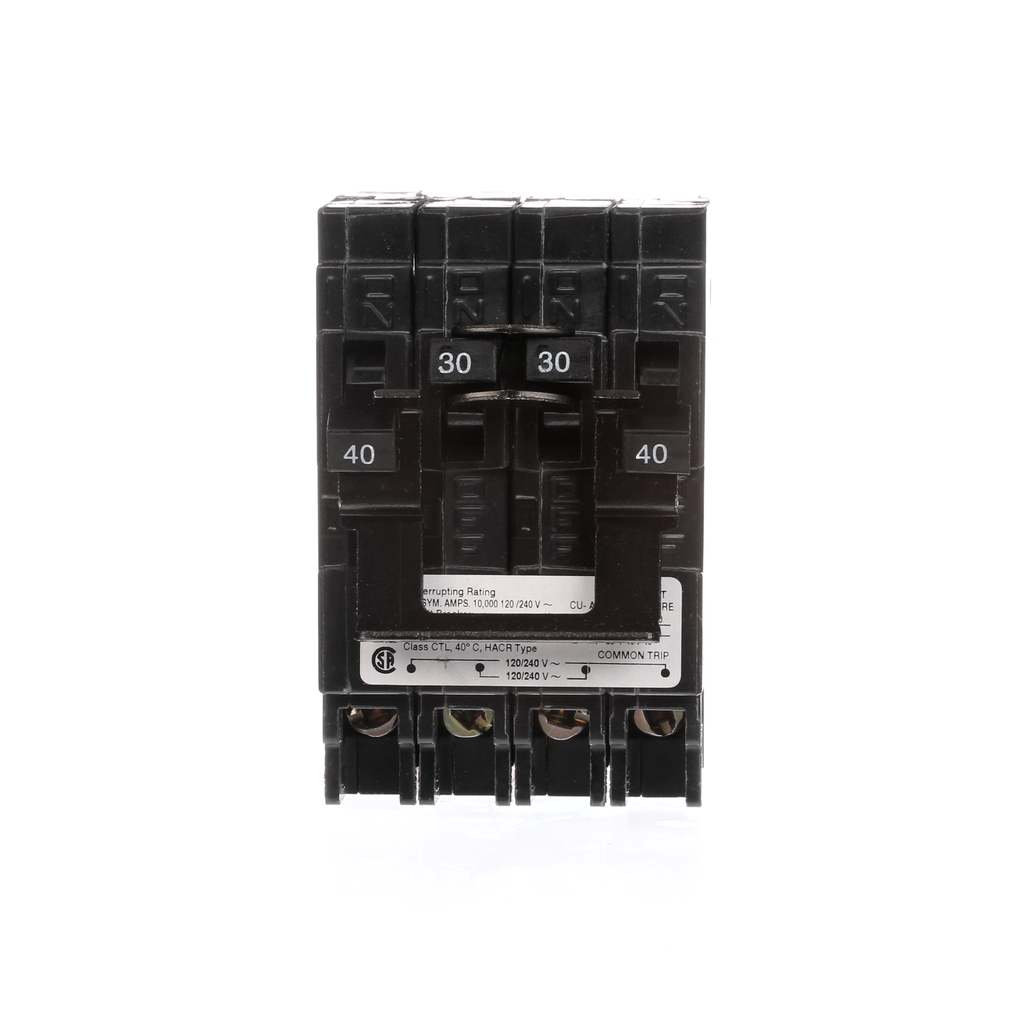

Siemens Industry Q24030CT2 2-Pole 120/240 VAC 40/30 Amp 10 kA Plug-In Common Trip Quadplex Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$58.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q24030CT2
North Coast Part # 69511

Features

  • One 40 Amp and one 30 Amp double pole
  • Quadplex 1/2 in. frame
  • Plug in type
  • Space saving
  • UL-Listed

Specifications

  • Design of the product: QT
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Number of poles: 2
  • Height [in]: 2 in
  • Depth [in]: 3 in
  • Width [in]: 3 in

Overview

UPC 78364308396
Item Long Description Siemens space saving, plug in circuit breakers are intended for use in Siemens EQ, Siemens Ultimate, ITE and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required. The quadplex breakers provide 2 double pole breakers in half the space of standard sized breakers. These triplex, 1/2 in. frame breakers are ideal when new circuits are required in a panel that has no available spaces. Siemens strongly recommends against the use of
GTiN 00783643083967
Length 3 in
Width 3 in
Voltage 120/240 Volt
Type QT
Applications ElectricalDistribution
Depth 3 in
Height 2 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
