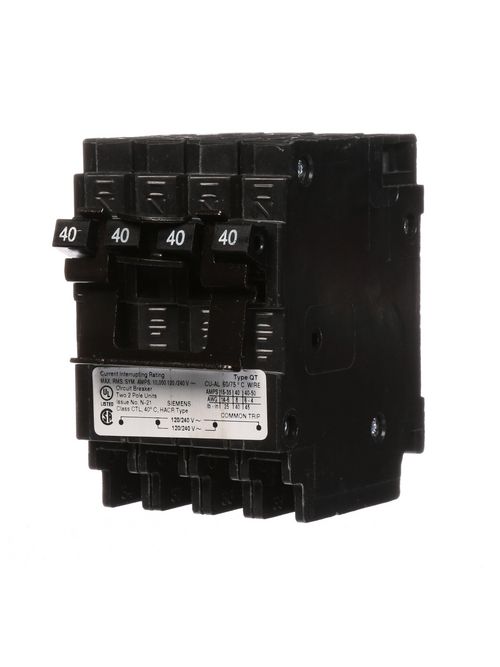

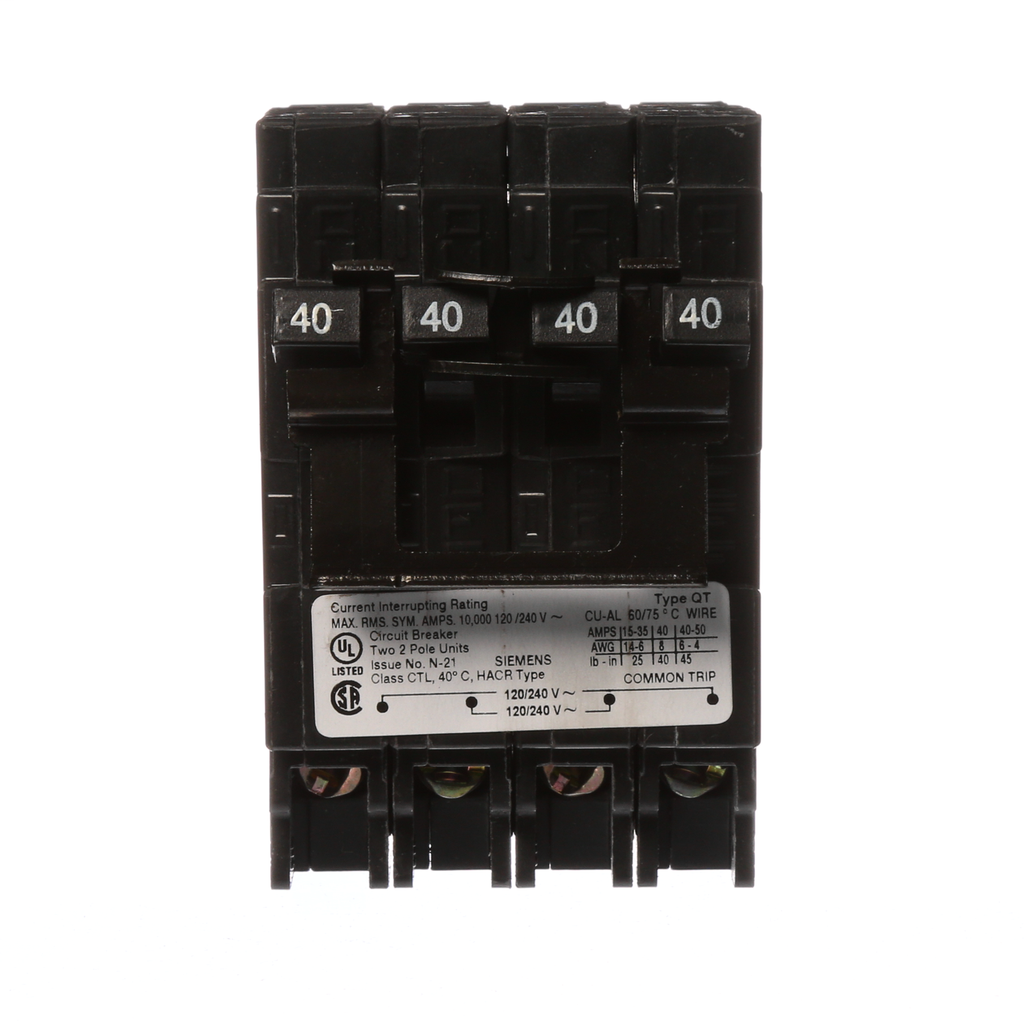

Siemens Industry Q24040CT2 2-Pole 40 Amp 120/240 VAC 10 kA Quadplex Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$58.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q24040CT2
North Coast Part # 151606

Features

  • Two 40 Amp double pole circuit breakers
  • Quadplex 1/2 in. frame
  • Plug in type
  • Space saving design allows 2 poles to fit in a 1 in. panel space
  • 10K AIC series rating
  • 120/240 VAC
  • UL listed
  • CSA certified
  • HACR rated
  • Designed for residential/commercial applications

Specifications

  • Design of the product: QT
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Number of poles: 2
  • Height [in]: 2 in
  • Depth [in]: 3 in
  • Width [in]: 3 in

Categories

Overview

GTiN 00783643083974
Length 3 Inch
Width 3 in
Voltage 120/240 Volt
Type QT
Applications ElectricalDistribution
Depth 3 in
Height 2 Inch
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 AIC
Trip Range Thermal Magnetic
Product UPC 78364308397
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
