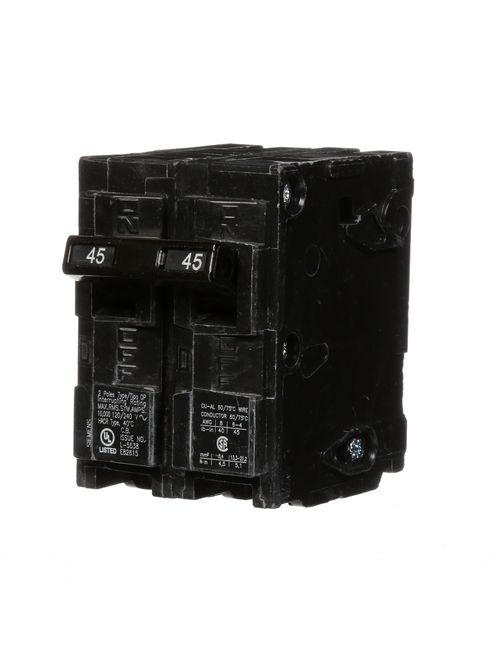

Siemens Industry Q245 2-Pole 120/240 VAC 45 Amp 10 kA Plug-In Common Trip Circuit Breaker

$15.42/ea

In Stock | 24 available at 11 locations

Adding...

Already a Customer? Log in to view your pricing

Features

2-pole, 45 Amp, 240-Volt type QP circuit breaker
10,000 AIC interrupting rating
Siemens type QP circuit breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature
Compatible with Siemens PL and ES series load centers
Use for overload and short-circuit protection of your electrical system
Thermal-magnetic

Standard: UL LISTED / CSA / NOM CERTIFIED
Continuous current rated value: 45 A
Voltage between phase and Ground (GND) rated value: 120 V
Voltage between phase and phase rated value: 240 V
Supply voltage frequency rated value 50/60 Hz: TRUE
Suitability for operation: ELECTRICAL DISTRIBUTION
Number of poles: 2
Design of the product: QP
Size of the circuit-breaker: QP (125A)
Design of the overload release: THERMAL - MAGNETIC
Height [in]: 2.87 in
Width [in]: 2 in
Depth [in]: 3 in
Product feature: 10kA INTERRUPT
Type of electrical connection: PLUG-IN
Product brand name: SIEMENS
Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
Type of mounting panel: LOADCENTER

UPC	78364316778
GTiN	00783643167780
Length	3 in
Width	2 in
Voltage	120/240 Volt
Type	QP/MP
Applications	For Electrical Distribution
Depth	3 in
Height	2.87 in
Connection Type	Plug-In
Family Brand Name	Siemens
TC Connection	PLUG-IN
Number of Poles	2 Pole
Interrupt Rating	10 kA
Trip Range	Thermal Magnetic
Operating Temperature	N/A
Frame	QP(125A)
Actuator	N/A
Trip Type	Thermal Magnetic
Load Rating	N/A
Enclosure	N/A
Sub Brand	N/A
Conductor Size	8-6AWG(CU)/8-4AWG(AL)
Blade Dimensions	3 in L x 3 in W x 2 in H
