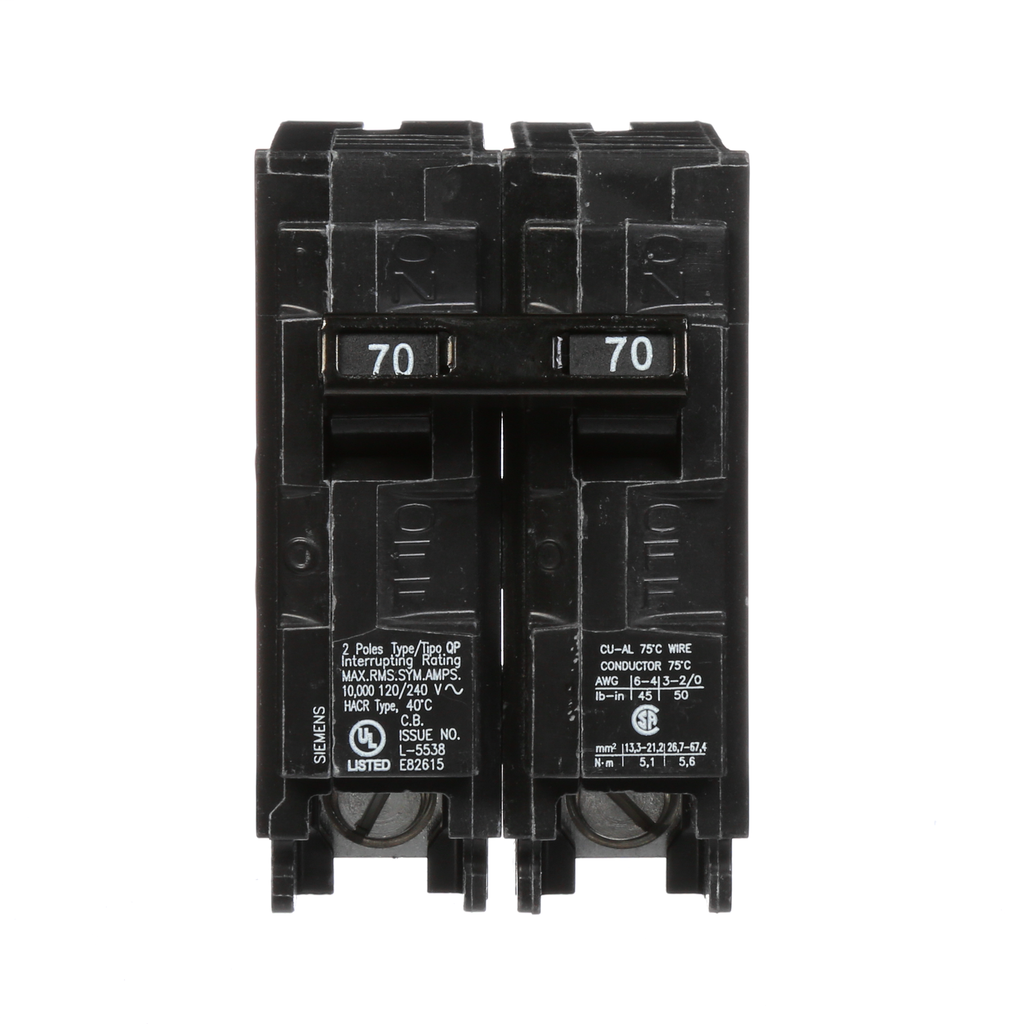

Siemens Industry Q270 2-Pole 120/240 VAC 70 Amp 10 kA Plug-In Common Trip Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$40.96/ea
In Stock | 168 available at 30 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q270
North Coast Part # 10750

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 70 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.12 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 4AWG (CU) / 8 - 2AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364314866
GTiN 00783643148666
Length 3 in
Width 2 in
Voltage 120/240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 3.12 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 3 in L x 3 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 8-4AWG(CU)/8-2AWG(AL)
