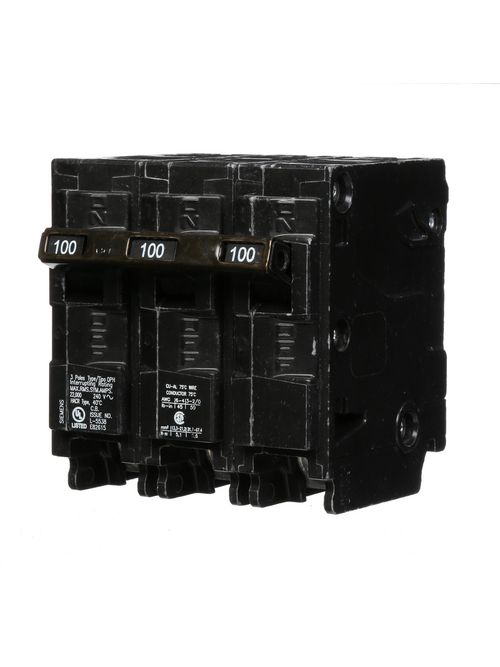

Siemens Industry Q3100H 3-Pole 100 Amp 240 VAC 22 kA Plug-In Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$261.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q3100H
North Coast Part # 551899

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 100 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: QPH
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.12 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364317082
GTiN 00783643170827
Length 3 in
Width 3 in
Voltage 240 Volt
Type QPH
Applications ELECTRICALDISTRIBUTION
Depth 3 in
Height 3.12 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 3 Pole
Interrupt Rating 22 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 4-1/0AWG(CU)/2-1/0AWG(AL)
