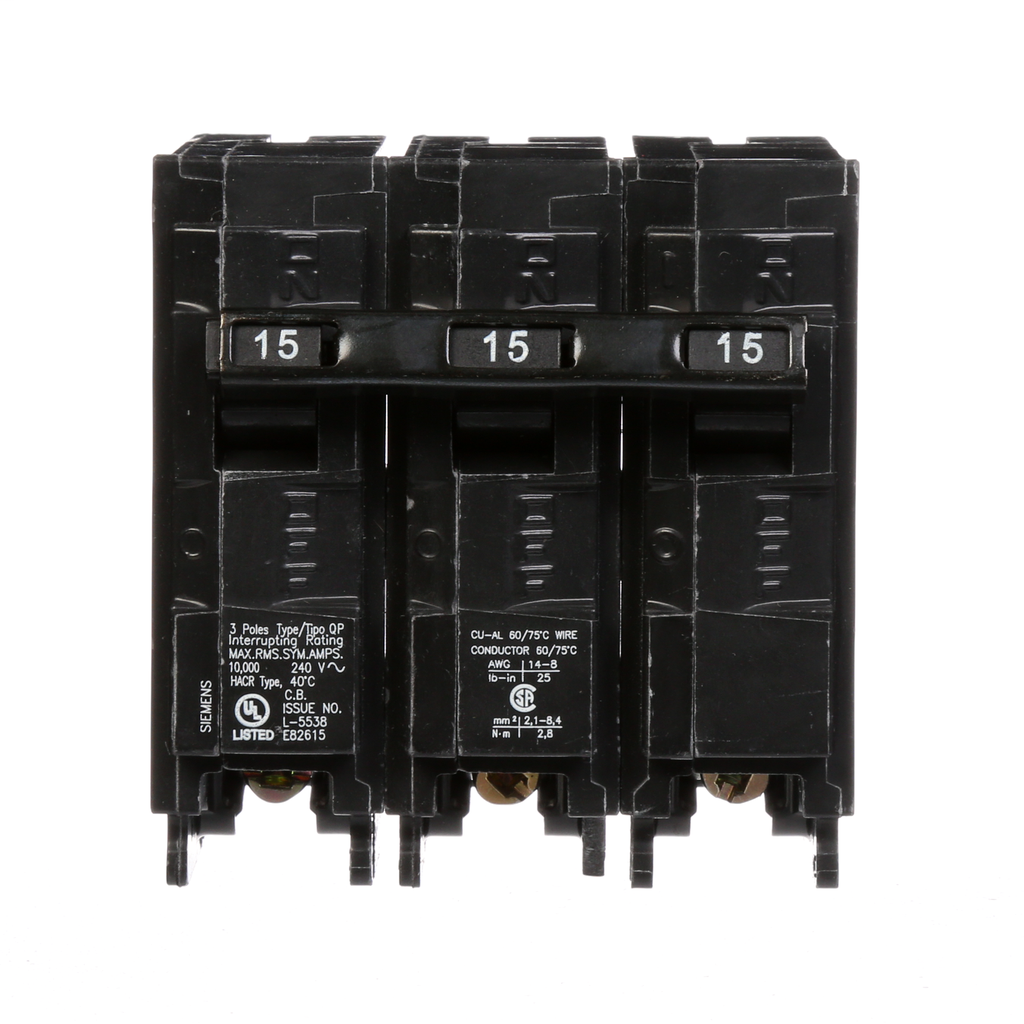

Siemens Industry Q315 Breaker 15 Amp 3-Pole 240 Volt Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$114.55/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q315
North Coast Part # 11166

Features

  • 10,000A IR
  • Common trip 120/240 Volt AC
  • For use on 3 phase panels
  • 3 pole 15 Amps
  • Siemens type QP circuit breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature
  • Compatible with Siemens PL and ES series load centers
  • Use for overload and short-circuit protection of your electrical system
  • Thermal-magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 15 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 12AWG (CU) / 12 - 10AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364314839
GTiN 00783643148390
Length 3 in
Width 3 in
Voltage 240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 2.87 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 12.8 in L x 4 in W x 3.4 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-12AWG(CU)/12-10AWG(AL)
