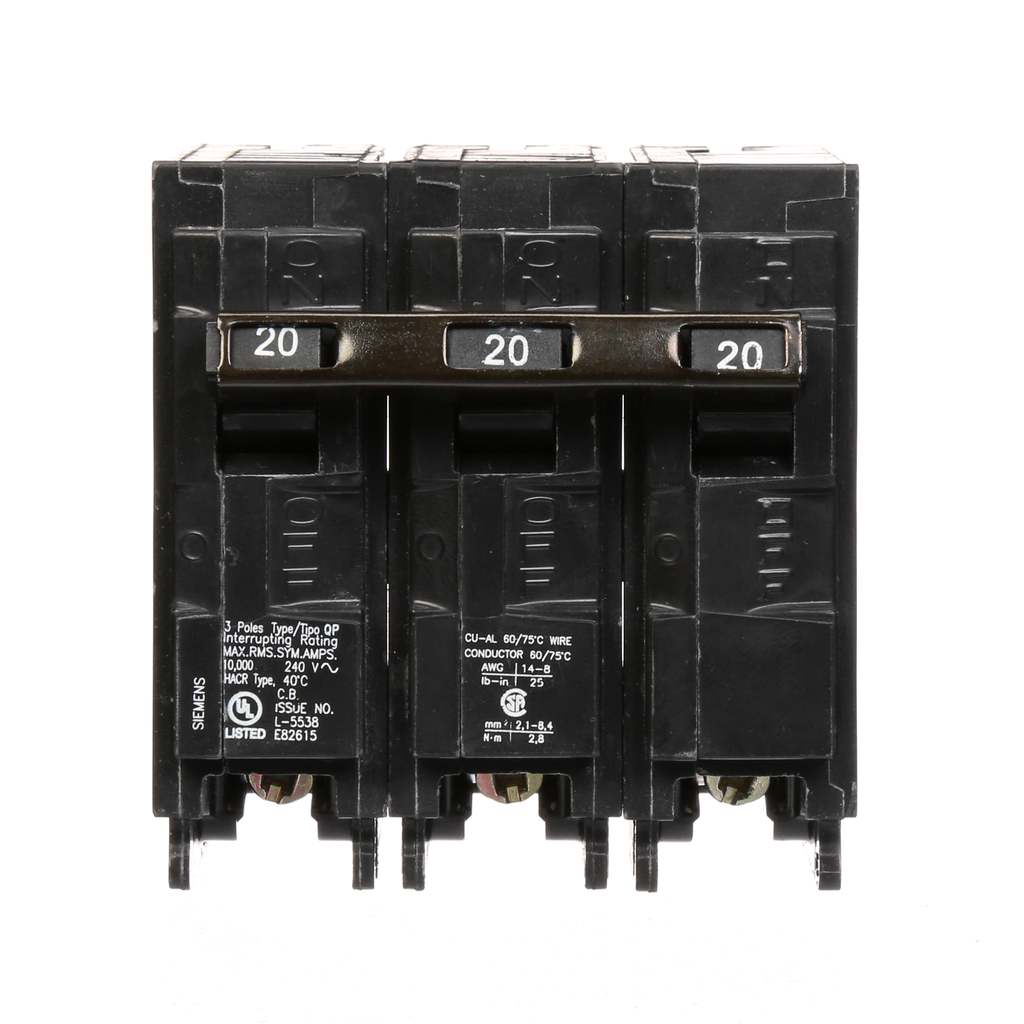

Siemens Industry Q320 Breaker 20 Amp 3-Pole 240 Volt Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$127.16/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q320
North Coast Part # 11198

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 20 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 12AWG (CU) / 12 - 10AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

GTiN 00783643148406
Length 3 Inch
Width 3 in
Voltage 240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 3.4 Inch
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 12.8 in L x 3.7 in W x 3.4 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Product UPC 78364314840
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-12AWG(CU)/12-10AWG(AL)
