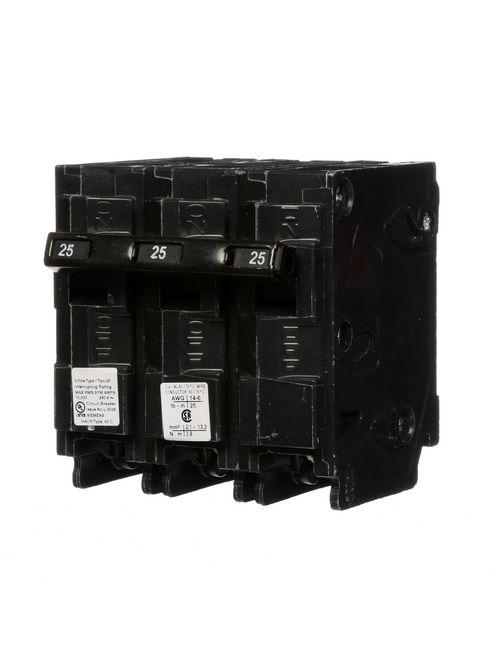

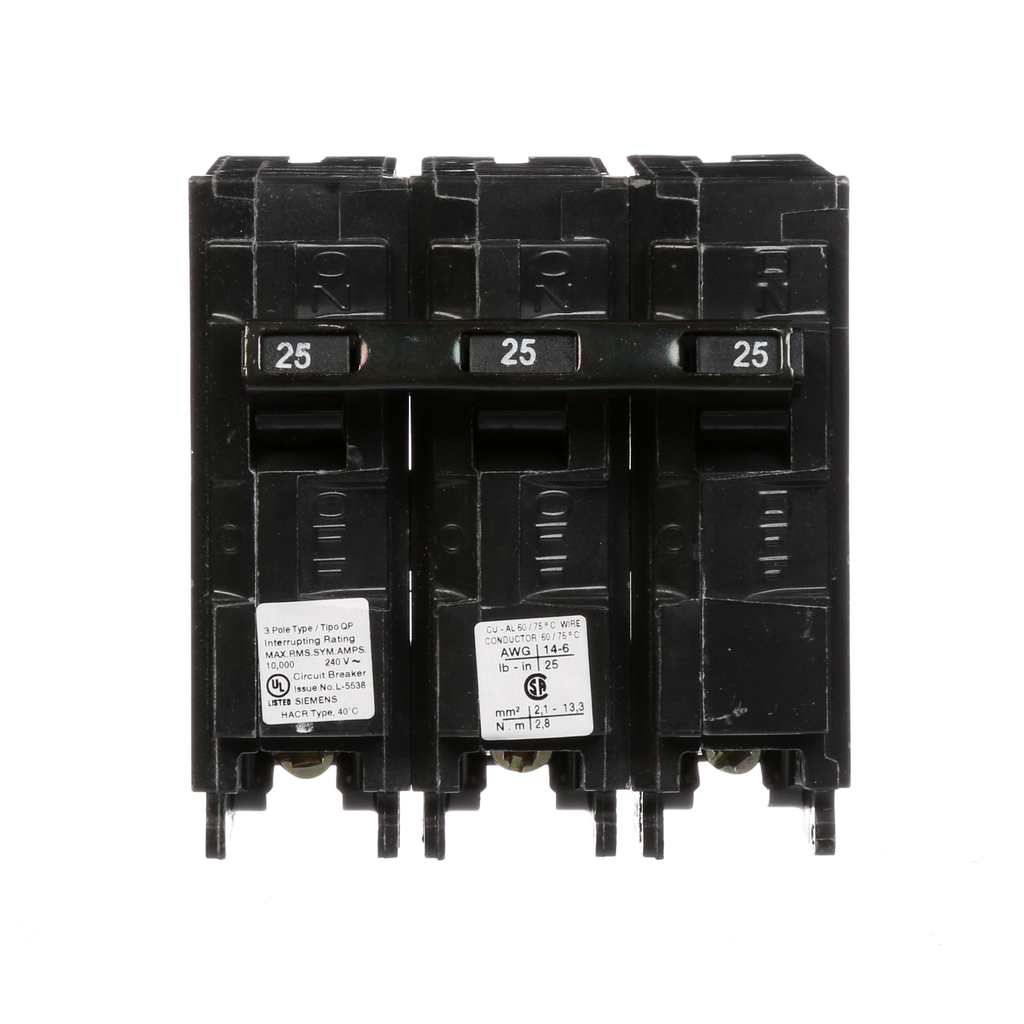

Siemens Industry Q325 Breaker 25 Amp 3-Pole 240 Volt Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$127.16/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q325
North Coast Part # 11237

Features

  • 10K AIC series rating
  • Use for overload and short-circuit protection of your electrical system
  • Plug-in type
  • UL listed
  • Designed for residential/commercial applications
  • Siemens type QP circuit breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 25 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 2.87 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 6AWG (CU) / 12 - 6AWG (AL)
  • Type of mounting panel: LOADCENTER

Categories

Overview

UPC 78364315675
Item Long Description Siemens Type QP Triple Pole Circuit Breaker are rated for 25 Amps and 120/240-Volts. This breaker has a 10 KAIC interrupt rating and is for use in Siemens panels only. The breaker is plug in style. Siemens strongly recommends against the use of used breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so.
GTiN 00783643156753
Length 3 in
Width 3 in
Voltage 240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 2.87 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 3 in L x 3 in W x 3 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-6AWG(CU)/12-6AWG(AL)
