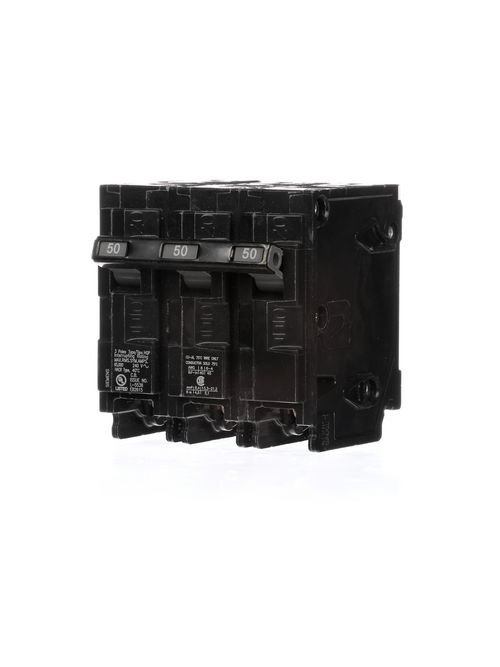

S-A Q350HH BREAKER 50A 3P 240V 66K
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$283.31/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q350HH
North Coast Part # 1889833

Features

  • 65 kA interrupting rating
  • Compatible with Siemens PL and ES series load centers
  • Use for overload and short circuit protection of your electrical system
  • Thermal magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 50 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: HQP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.12 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 65kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: LOADCENTER

Categories

Overview

GTiN 00783643149069
Length 3 Inch
Width 3 in
Voltage 240 Volt
Type HQP
Applications ELECTRICALDISTRIBUTION
Depth 3 in
Height 3 Inch
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 3 Pole
Interrupt Rating 66 AIC
Trip Range Thermal Magnetic
Product UPC 78364314906
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 8-6AWG(CU)/8-4AWG(AL)
