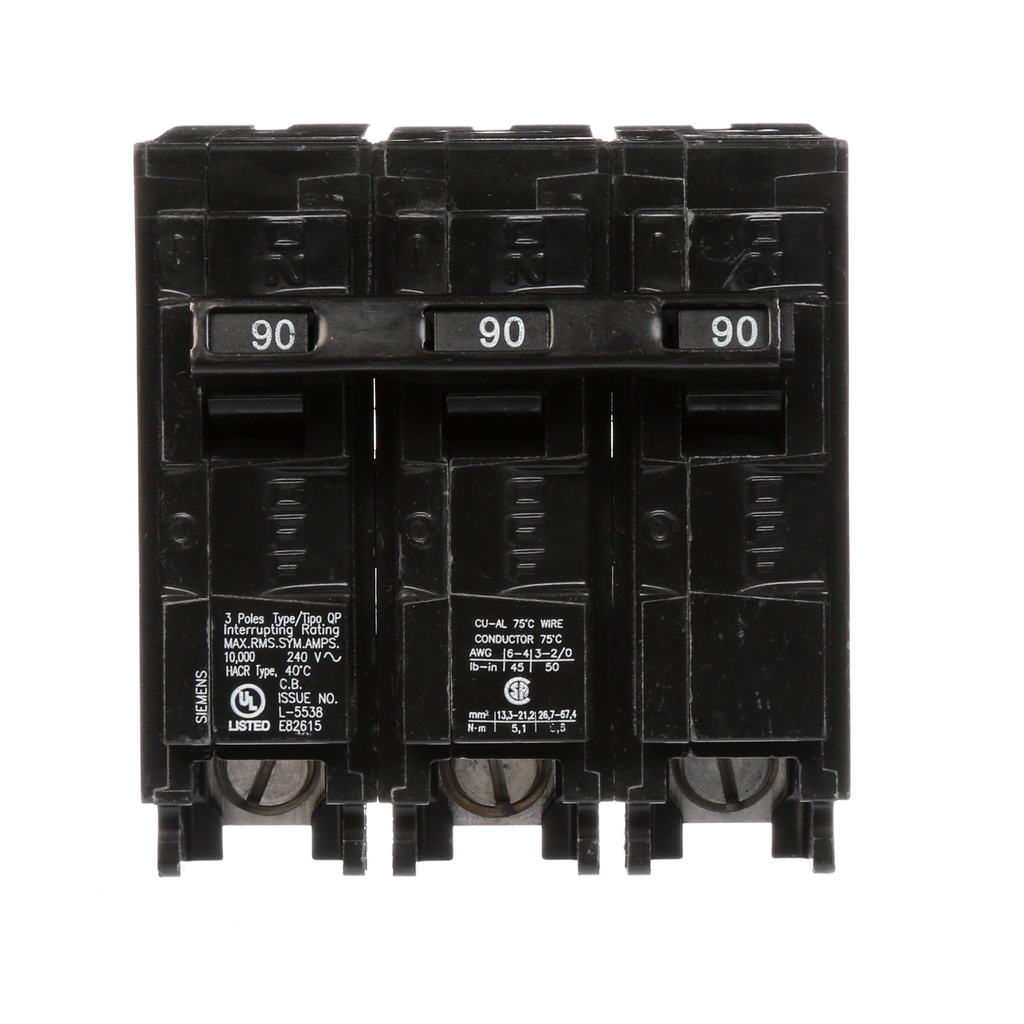

Siemens Industry Q390 Breaker 90 Amp 3-Pole 240 Volt Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$189.69/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q390
North Coast Part # 11939

Features

  • 10K AIC series rating
  • 1 in. frame
  • Plug-in type
  • UL listed
  • Designed for residential/commercial applications
  • Time saving insta-wire feature
  • Use for overload and short-circuit protection of your electrical system

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 90 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.12 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
  • Type of mounting panel: LOADCENTER

Categories

Overview

UPC 78364314846
Item Long Description Plug-in type breakers are the most economical breakers on the market. They are designed for residential applications or light office. If you have a problem with one, it is recommended to change out the breaker and install a new one. Available in 1 Pole, 2 Pole and 3 Pole and even twins or duplex type or two in on unit. Molded case circuit plug-in breakers for panelboard mounting with insta-wire in 3 types of tripping speed Q=10KA, QH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 208Yvac.
GTiN 00783643148468
Length 3 in
Width 3 in
Voltage 240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 3.12 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 12.8 in L x 3.7 in W x 3.4 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame QP(125A)
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 4-1/0AWG(CU)/2-1/0AWG(AL)
