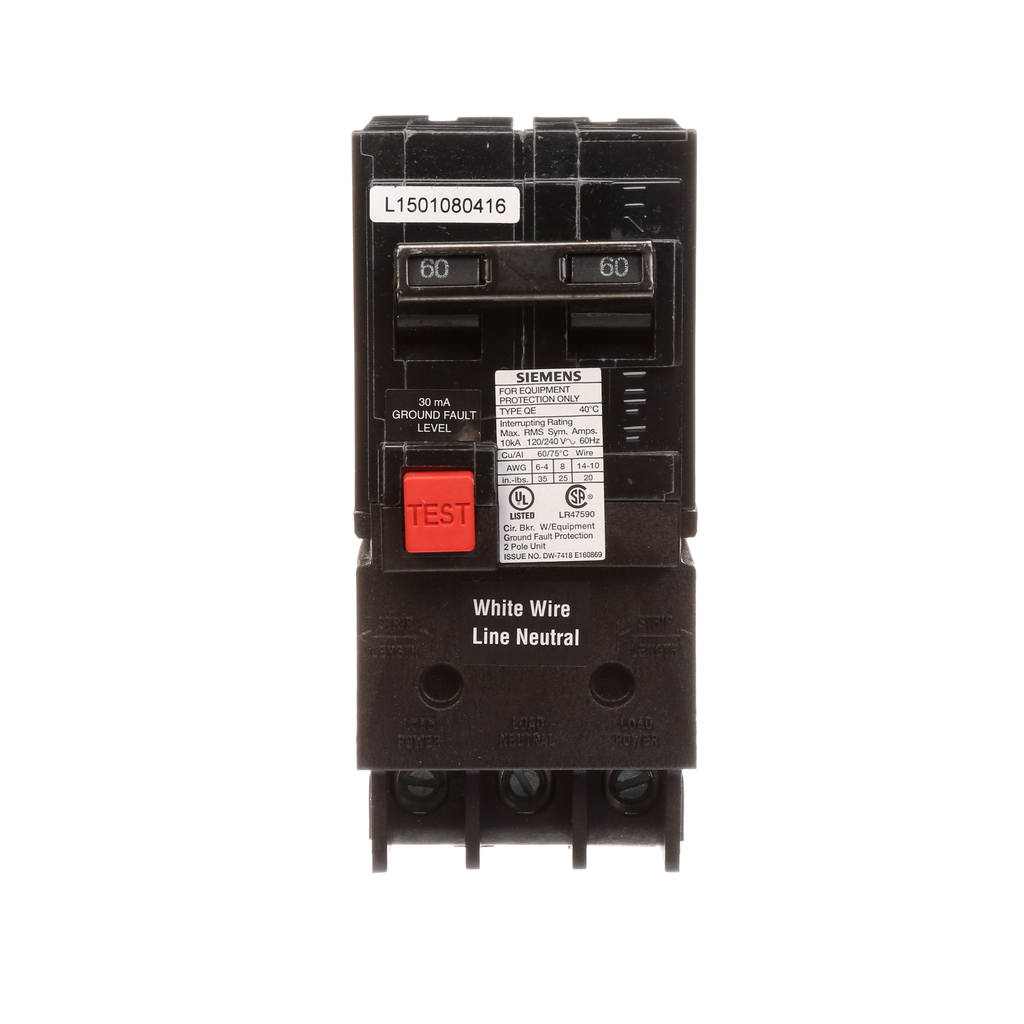

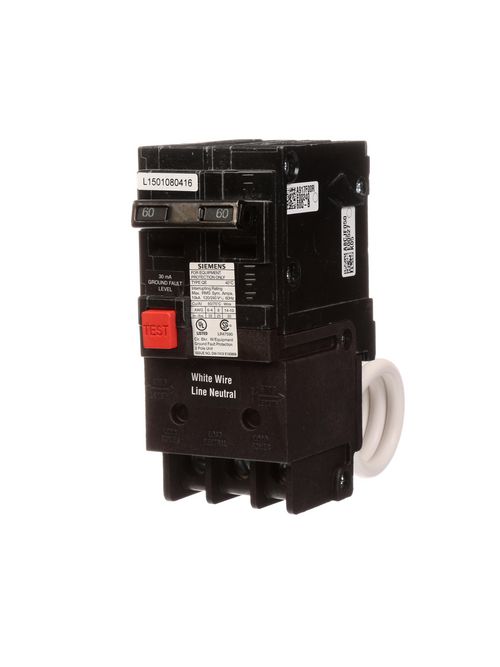

Siemens Ca QE260 QE BRKR,2P,120/240
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$397.08/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QE260
North Coast Part # 486041

Features

  • Type QE circuit breaker
  • Used to protect equipment from damaging line-to-ground faults
  • 30 mA GFCI protection
  • Standard 1 in. per pole format with plug in design

Specifications

  • Standard: UL / CSA
  • Continuous current rated value: 60 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: EQUIPMENT PROTECTION
  • Number of poles: 2
  • Design of the product: QE
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364330596
Item Long Description Siemens ground fault equipment protection circuit breakers provide protection to equipment from damaging line-to-ground fault currents. This circuit breaker will detect line-to-ground faults and de-energize the circuit for all ungrounded conductors of the circuit. If the current going to the equipment is greater than 30 mA than the current coming back the GFCI will open the circuit stopping the flow of electricity.
GTiN 00783643305960
Length 3 in
Width 4.000
Voltage 120/240 Volt
Type Type QE
Applications Electrical Distribution
Height 6 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 3 in L x 4 in W x 6 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Trip Range 30 mA
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 8-6AWG(CU)/8-4AWG(AL)
