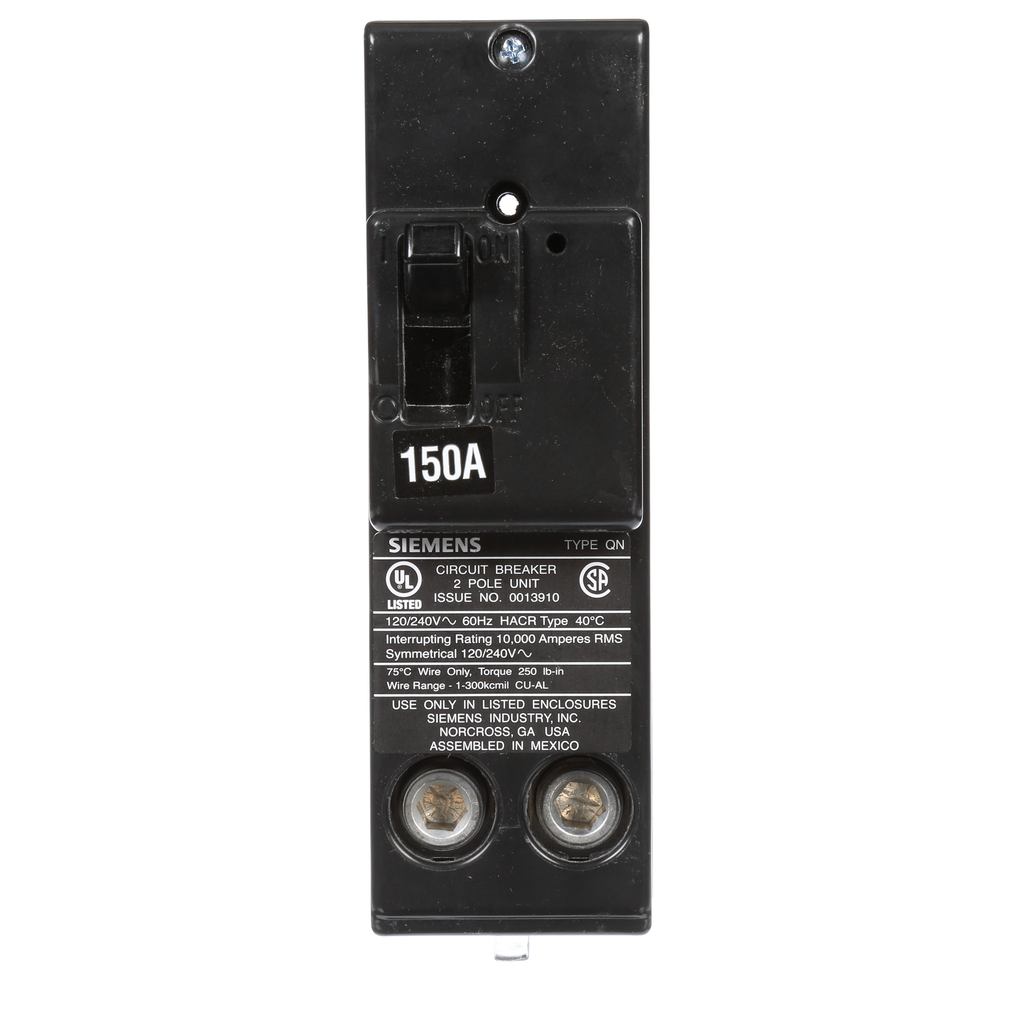

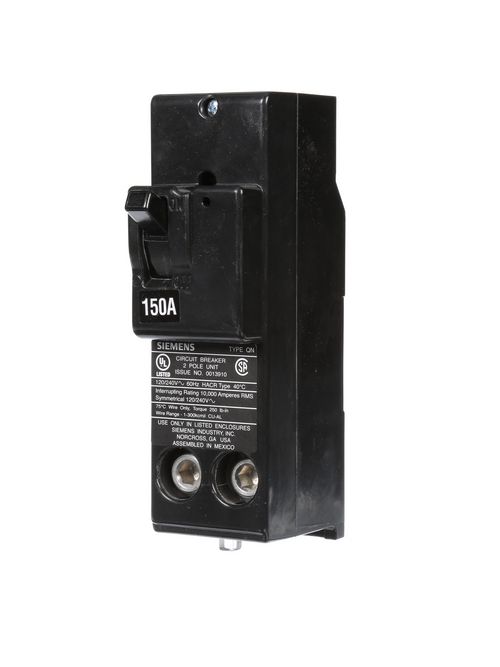

Siemens Industry QN2150 2-Pole 150 Amp 120/240 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$141.19/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QN2150
North Coast Part # 159707

Features

  • For use as a main breaker
  • Wire range - 4 - 300 kcmil copper/aluminum
  • 120/240 VAC
  • 10,000 AIC rated
  • Suitable for use with Siemens circuit breaker enclosures and metering centers
  • ANSI certified and CSA and UL listed
  • Plug-on installation
  • Requires 4 panel spaces, 2 adjacent and 2 opposite

Specifications

  • Design of the product: QNH
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 2 in
  • Depth [in]: 7 in
  • Width [in]: 4 in
  • Continuous current rated value: 200 A

Categories

Overview

UPC 78364320427
Item Long Description The Siemens 150 Amp 4-3/32 in. Double-Pole Circuit Breaker is suitable for use with Siemens circuit breaker enclosures and metering centers. The breaker is rated for up to 10,000 AIR and uses wire range #4 - 300 kcmil copper/aluminum. The breaker is ANSI certified and CSA and UL listed with a maximum load of 240-Volt.
GTiN 00783643204270
Length 7 in
Width 4 in
Voltage 120/240 Volt
Type QNH
Applications ElectricalDistribution
Depth 7 in
Height 2 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type ThermalMagnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
