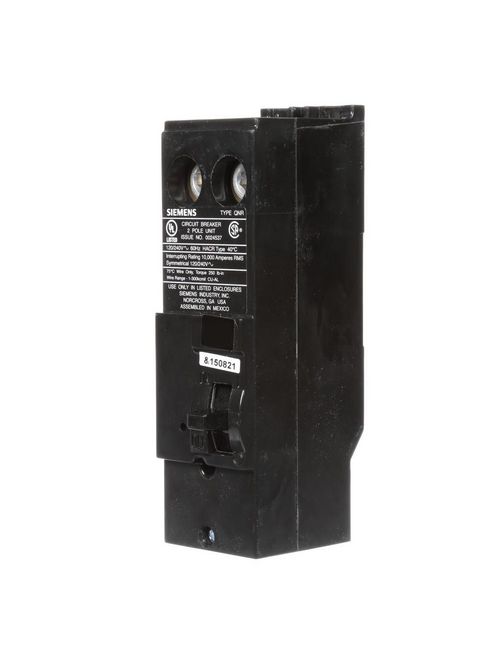

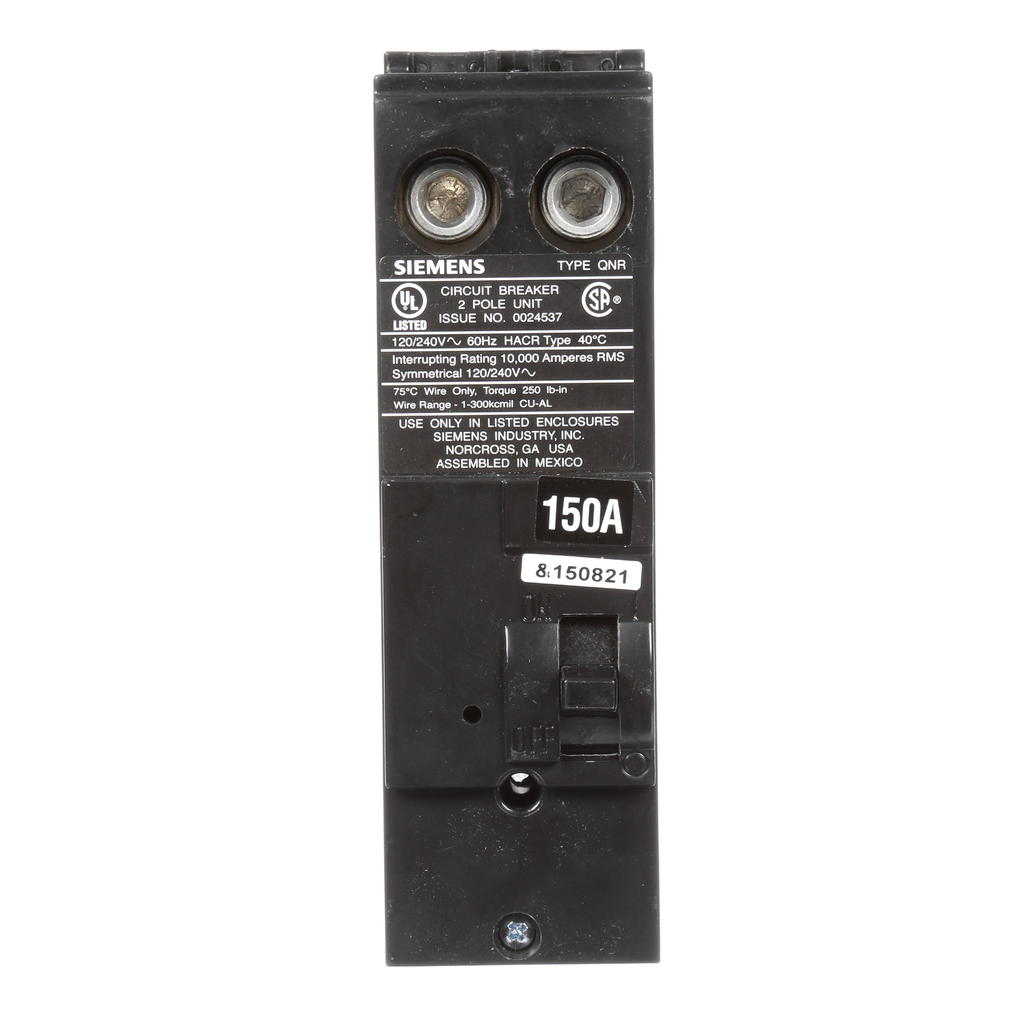

Siemens Industry QN2150R 2-Pole 150 Amp 120/240 VAC 10 kA Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$141.19/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QN2150R
North Coast Part # 491795

Features

  • Reverse handle
  • Provides protection of your homes wiring system against overload and short-circuiting
  • Designed for Siemens circuit breaker enclosures and metering applications
  • #1-300 kcmil wire range compatible with copper and aluminum conductors

Specifications

  • Design of the product: QNRH
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 4 in
  • Depth [in]: 7 in
  • Width [in]: 2 in
  • Continuous current rated value: 200 A

Overview

UPC 78364320420
Item Long Description Type Q plug-in circuit breaker, Full module, 150 A, 2 pole, Requires 4 panel circuits, 2 adjacent and 2 opposite, Two twist outs should be only removed. Take up four 1 inch spaces and are intended for use in Siemens load centers, meter combinations and multi-family metering where specified.
GTiN 00783643204201
Length 7 in
Width 2 in
Voltage 120/240 Volt
Type QNR
Applications Electrical Distribution
Depth 7 in
Height 4 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Actuator Switch Position Knob
Blade Dimensions 7.8 in L x 4.4 in W x 2-1/2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
