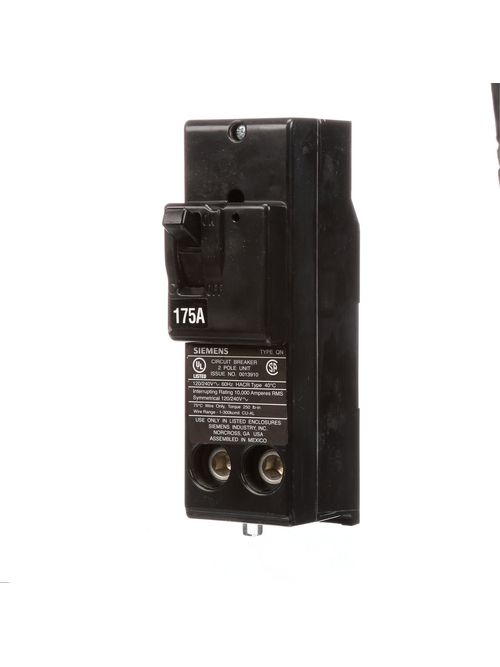

Siemens Industry QN2175 120/240 Volt 175 Amp 10 kaic 2-Pole Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$131.73/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QN2175
North Coast Part # 552122

Features

  • Designed for Siemens circuit-breaker enclosures and metering applications
  • #1-300 kcmil wire range compatible with copper and aluminum conductors
  • 175 Amp 120/240 VAC, 10,000 AIC rating
  • Meets UL, CSA, and ANSI safety requirements
  • Wire range #1-300 kcmil Cu/Al shunt trip available, use 00S01 suffix for ordering
  • Padlocking device available, use catalog number QLN3

Specifications

  • Design of the product: QPJ
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 240 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 4 in
  • Depth [in]: 8 in
  • Width [in]: 3 in
  • Continuous current rated value: 125 A

Overview

UPC 78364320428
GTiN 00783643204287
Length 8 in
Width 3 in
Voltage 120/240 Volt
Type QPJ
Applications ElectricalDistribution
Depth 8 in
Height 4 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type ThermalMagnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
