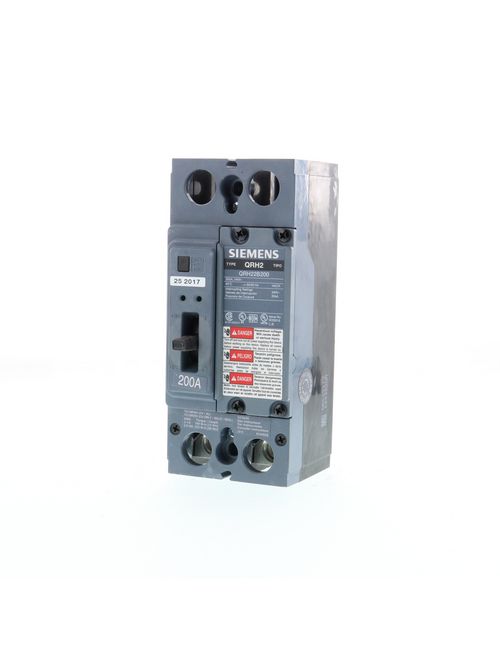

Siemens Ca QRH22B200 QR MCCB,25kA@2
Product image thumbnail 0
Product image thumbnail 1
$731.65/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QRH22B200
North Coast Part # 1338070

Specifications

  • Standard: UL489 / CSA-C22.2 / NOM-003
  • Continuous current rated value: 200 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2 0
  • Design of the product: QRH2
  • Size of the circuit-breaker: QR (250A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 7 in
  • Width [in]: 3 in
  • Depth [in]: 3.39 in
  • Product feature: 25kAIC INTERRUPT V
  • Type of electrical connection: MECHANICAL LUGS Hz
  • Product brandname: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 2/0AWG - 300KCMIL (CU/AL)
  • Type of mounting panel: CONTROL AND DISTRIBUTION BOARDS

Overview

UPC 80476613624
Item Long Description Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs, TM - are Circuit Protection Molded Case Circuit Breakers. 2-Pole circuit breaker Type QRH2 HACR rated. Rated 240V (200A). AIR (25 kA). Special features UL listed for reverse feed applications, (AL) load side lugs installed.
GTiN 00804766136245
Width 3 in
Operating Temperature 40 C
Voltage 240 Volt
Type CIRCUIT BREAKER
Material Molded Case Circuit Breaker
Applications Circuit Protection
Depth 3.39 in
Height 7 in
Frequency 50/60 Hz
Connection Type Load Lugs
Temperature Rating 40 C
Family Brand Name Siemens
Frame QR
TC Connection LOAD LUGS
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 25 kA
Sub Brand QR
