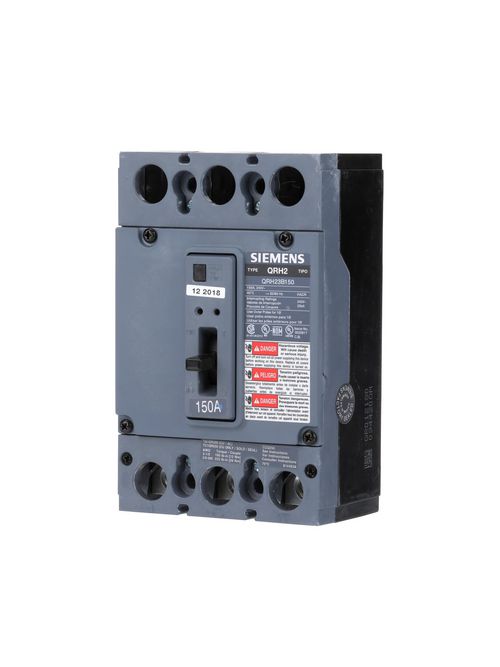

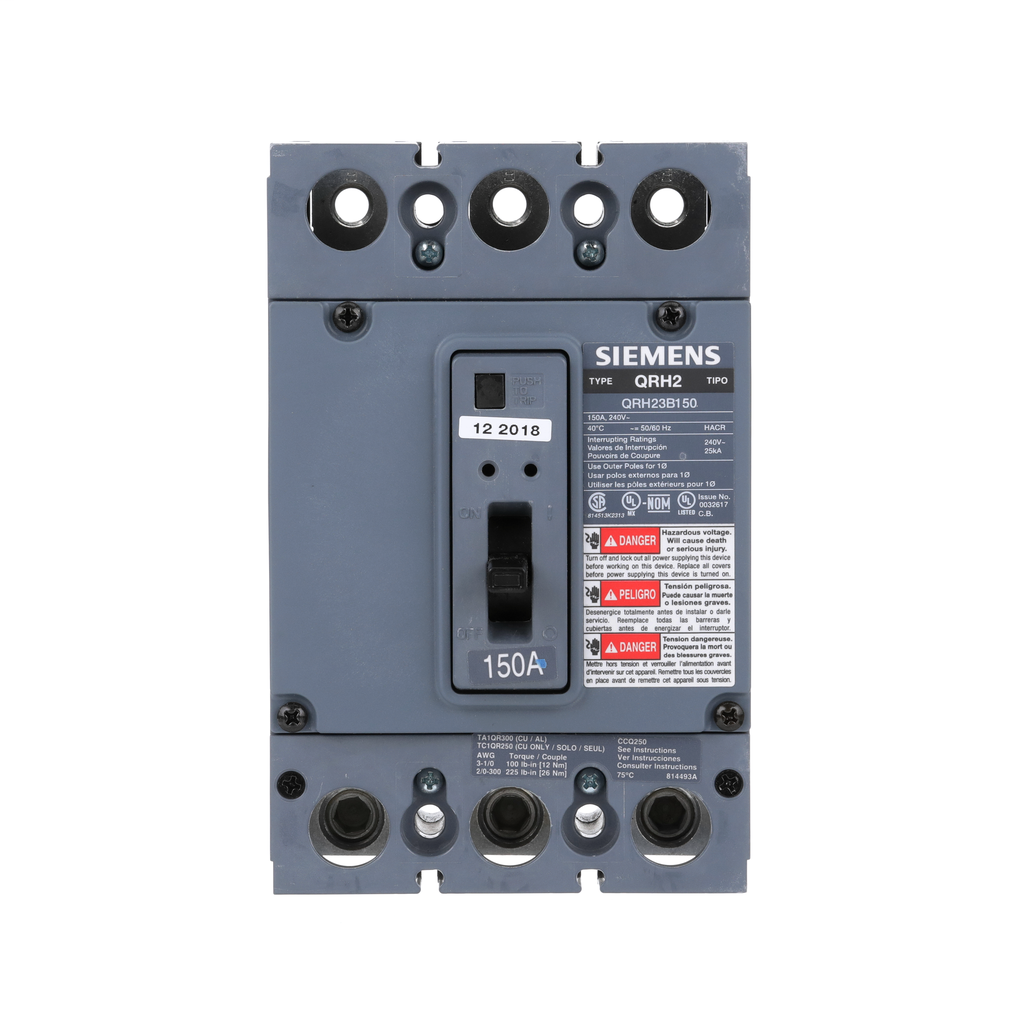

BREAKER QR 3P 150A 240V 25KA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,261.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QRH23B150
North Coast Part # 1688203

Specifications

  • Standard: UL489 / CSA-C22.2 / NOM-003
  • Continuous current rated value: 150 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3 0
  • Design of the product: QRH2 V
  • Size of the circuit-breaker: QR (250A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 7 in
  • Width [in]: 4.5 in
  • Depth [in]: 3.39 in
  • Product feature: 25kAIC INTERRUPT
  • Type of electrical connection: MECHANICAL LUGS
  • Product brandname: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 2/0AWG - 300KCMIL (CU/AL)
  • Type of mounting panel: CONTROL AND DISTRIBUTION BOARDS

Categories

Overview

UPC 80476613678
GTiN 00804766136788
Width 4.5 in
Operating Temperature 40DEGC
Voltage 240 Volt
Type General Purpose
Applications For Circuit Protection
Depth 3.39 in
Height 7 in
Temperature Rating 40 C
Family Brand Name Siemens
Frame QR
TC Connection Load Lugs
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Sub Brand Siemens
