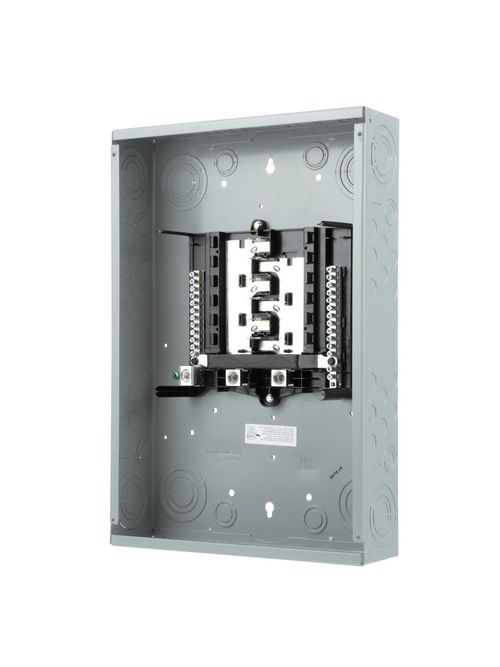

S-A S1224L1200 ES LC ML 12S/24C 1PH

Features

• Single phase, 120/240-Volt, 200 Amp main lug load center with 12-spaces/24-circuits
• Aluminum bus
• Ground bar field installed
• Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
• Single side inboard neutral
• Invertible for bottom feed application
• Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
• Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
• Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
• Rigid, sturdy base pan provides ruggedness required for harsh applications

Specifications

• Certificate of suitability: UL
• Ampacity: 200 A
• Voltage between phase and Ground (GND) rated value: 120 V
• Voltage between phase and phase rated value: 240 V
• Configuration of the busbars: ALUMINUM BUS
• Phase number: 1
• Mounting type: FLUSH / SURFACE
• Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
• Number of circuits in a trunking unit: 24
• Design of the housing: TYPE 1
• Number of width units for installation width: 12
• Product brand name: SIEMENS
• Product type designation: ES SERIES ASSEMBLED LOAD CENTER
• Special product feature: GREY TRIM
• Product sub brand name: LOAD CENTERS
• Switching capacity current acc. to EN 60898 rated value: 100000 A
