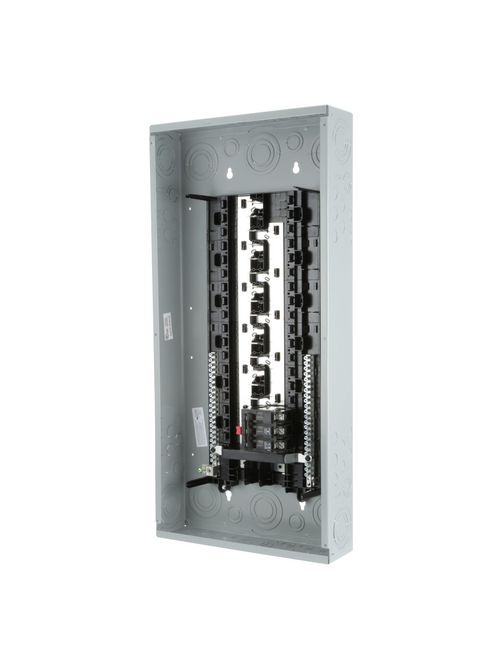

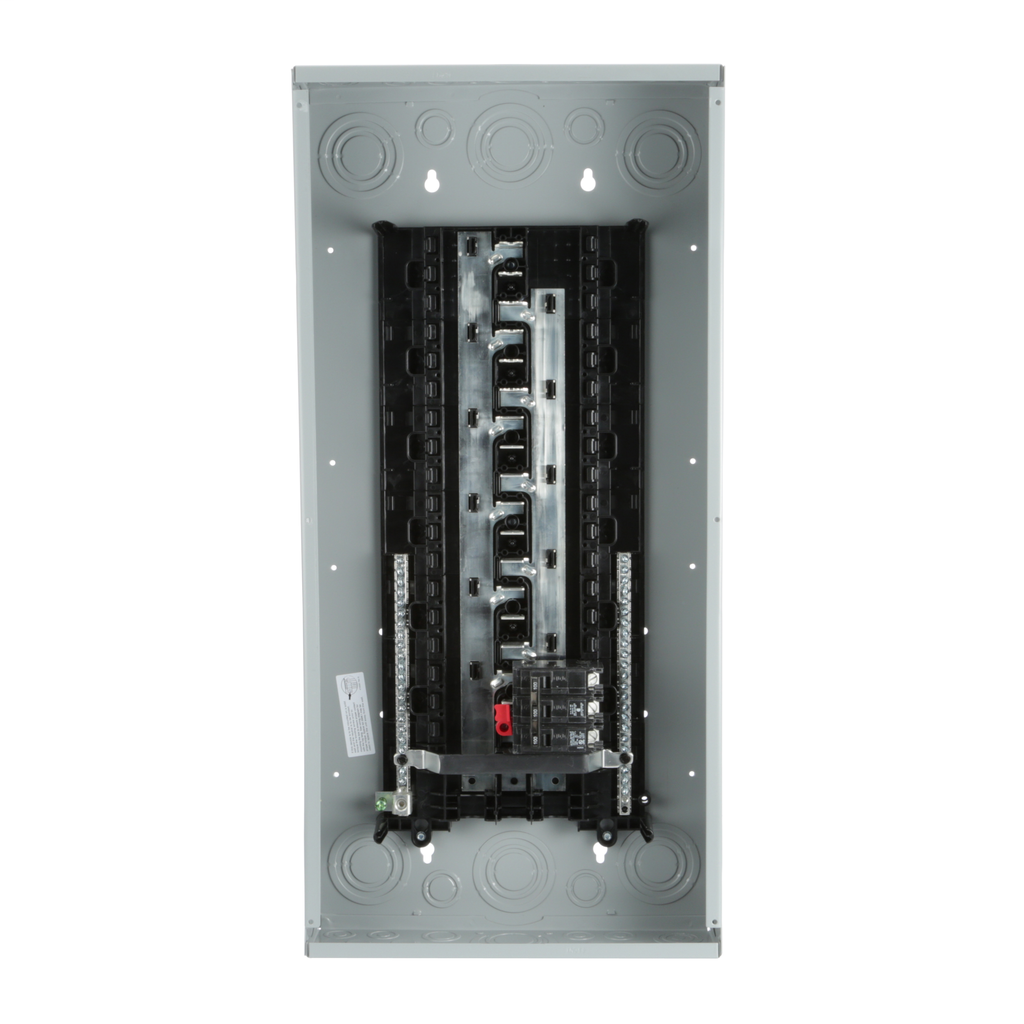

Siemens Industry S3042B3100 120/208/240 VAC 100 Amp 3-Phase 3/4-Wire NEMA 1 Main Breaker/Convertible Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$341.80/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # S3042B3100
North Coast Part # 754089

Features

  • A 3-phase, 120/240 or 120/208 -Volt, 100-Amp main breaker load center with 30-spaces/42-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors

Specifications

  • Certificate of suitability: UL
  • Ampacity: 100 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 208 V
  • Configuration of the busbars: ALUMINUM BUS
  • Phase number: 3
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 42
  • Design of the housing: TYPE 1
  • Size of the circuit-breaker: 100A
  • Number of width units for installation width: 30
  • Product brand name: SIEMENS
  • Product type designation: ES SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 22000 A

Overview

UPC 66264392617
GTiN 00662643926170
Size 2738.4375
Voltage 120/240 Volt
Type ESSERIESASSEMBLEDLOADCENTER
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Circuit Breaker Type 100A
Number of Phases 3
Amperage 100 Amp
Cover Type ES Series
Number of Spaces 30
Bus Rating ALUMINUMBUS
Interrupt Rating 22000 A
Enclosure TYPE1
Sub Brand UL
Cable Size N/A
