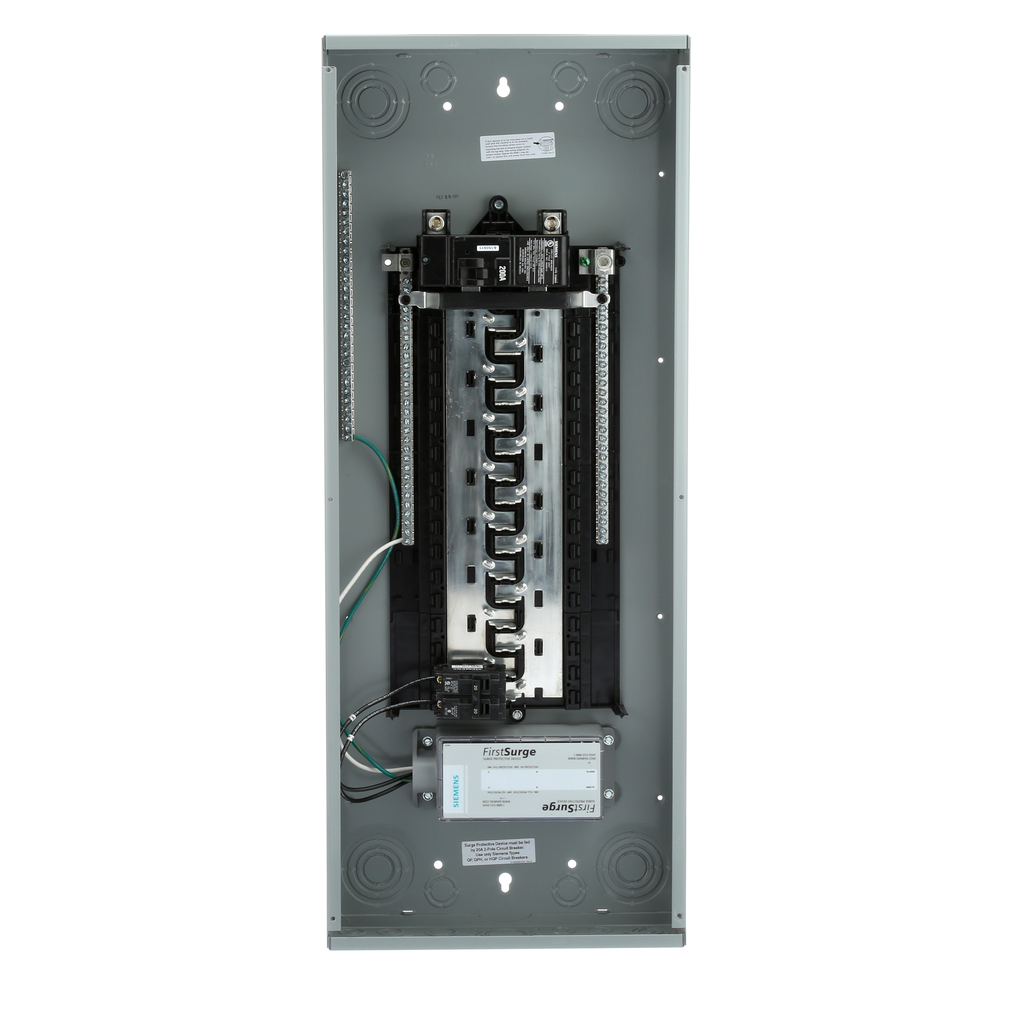

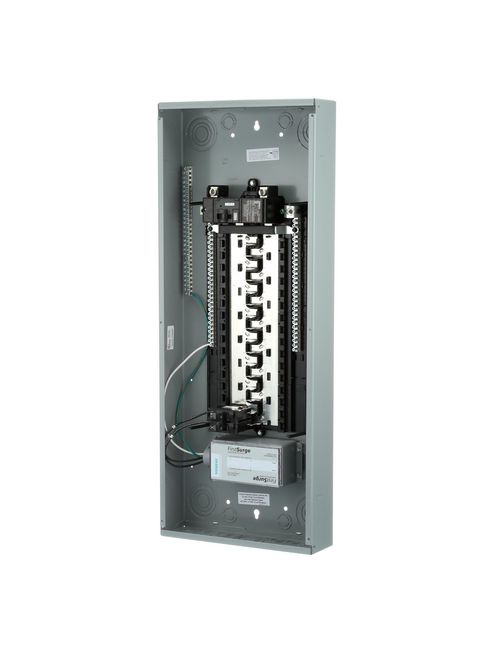

S-A S3054B1200S060 ES LC MB 30S/54C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$569.00/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # S3054B1200S060
North Coast Part # 1167506

Features

  • ES series panel includes a FirstSurge whole home surge protection device (FS060) factory installed
  • FS060 commercial quality surge protective device that has both audible and visual status alerts comes pre-installed
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Configuration of the busbars: ALUMINUM BUS
  • Phase number: 1
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 54
  • Design of the housing: TYPE 1
  • Size of the circuit-breaker: 200A
  • Number of width units for installation width: 30
  • Product brand name: SIEMENS
  • Product type designation: ES SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM/ FIRST SURGE 60KA SURGE
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 22000 A

Overview

UPC 80476605793
GTiN 00804766057939
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Number of Phases 1
Amperage 200 Amp
Type ESSERIESASSEMBLEDLOADCENTER
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Circuit Breaker Type 200A
Number of Spaces 30
Bus Rating ALUMINUMBUS
Interrupt Rating 22000 A
Enclosure TYPE1
Sub Brand UL
