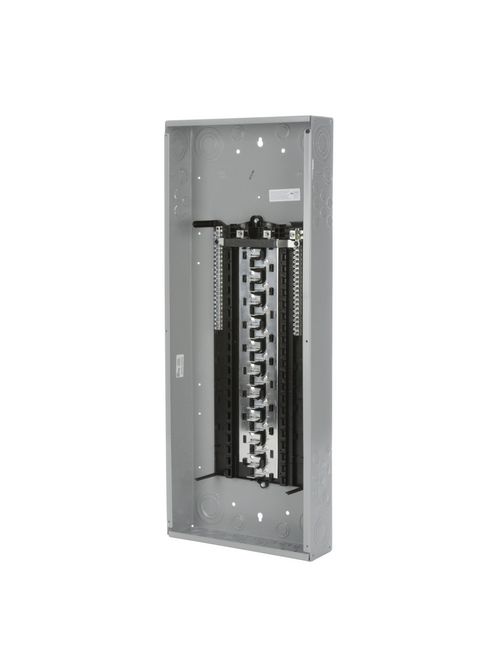

Siemens Industry S4040L1125 120/240 VAC 125 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Non-Convertible Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$253.45/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # S4040L1125
North Coast Part # 759831

Features

  • A single phase, 120/240-Volt, 125-Amp main lug load center with 12-spaces/12-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications

Specifications

  • Certificate of suitability: UL
  • Ampacity: 125 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Configuration of the busbars: ALUMINUM BUS
  • Phase number: 1
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 40
  • Design of the housing: TYPE 1
  • Number of width units for installation width: 40
  • Product brand name: SIEMENS
  • Product type designation: ES SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 100000 A

Overview

UPC 04089265135
GTiN 00040892651355
Size 3214.6875
Voltage 120/240 Volt
Type ESSERIESASSEMBLEDLOADCENTER
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 125 Amp
Cover Type ES Series
Number of Spaces 40
Bus Rating ALUMINUMBUS
Interrupt Rating 22000 A
Enclosure TYPE1
Sub Brand UL
Cable Size N/A
Circuit Breaker Type N/A
