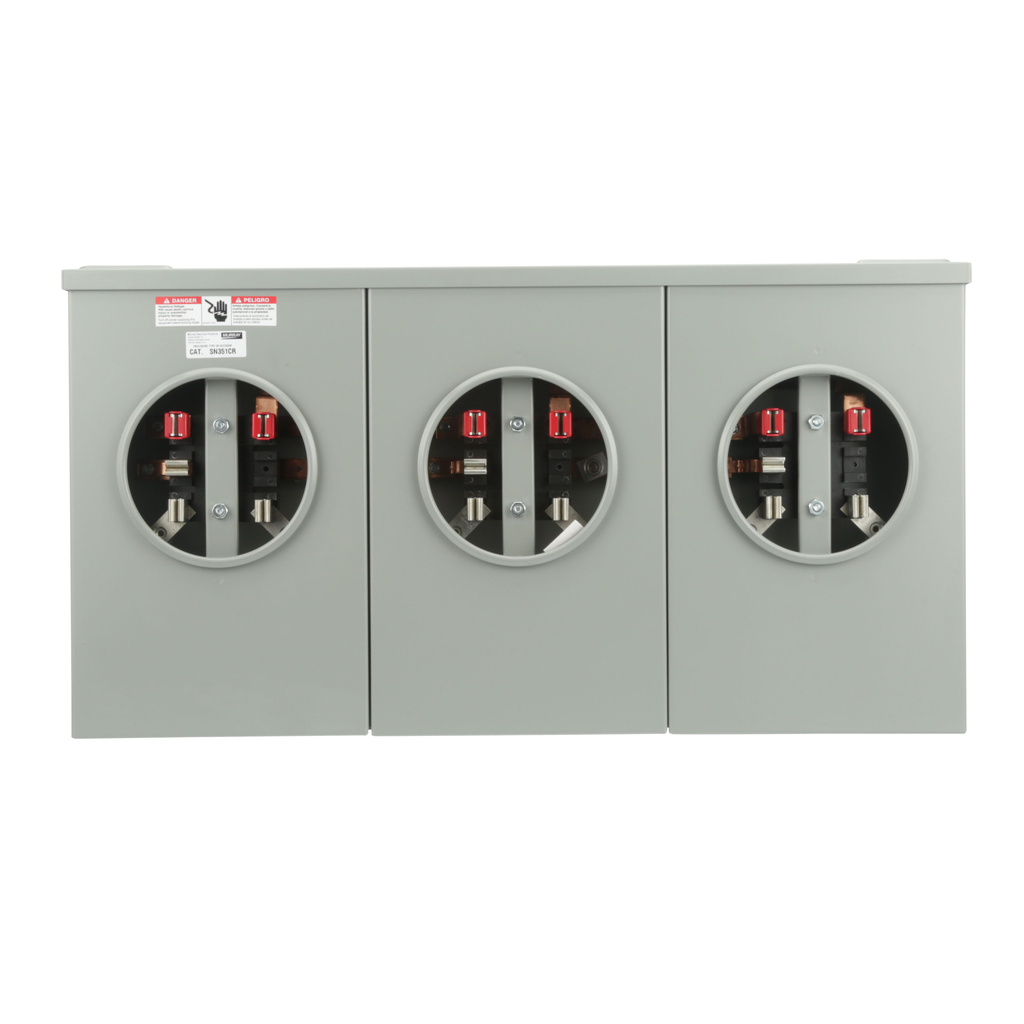

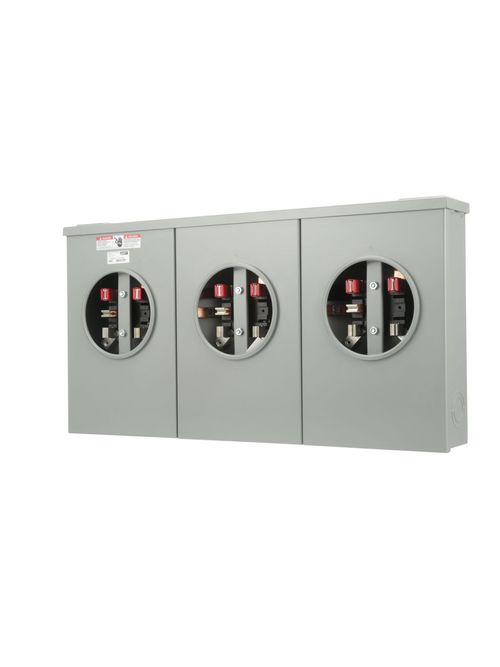

S-A SN351CR 100A 5J RING 3POS NO BP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$811.78/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # SN351CR
North Coast Part # 1277832

Specifications

  • Voltage between phase and phase rated value: 300 V
  • Ampacity: 100 A
  • Height [in]: 5 in
  • Width [in]: 17.2 in
  • Depth [in]: 30.8 in
  • Number of openings: 13
  • Product brandname: MURRAY
  • Product type designation: UAS8/9
  • Special product feature: NO BYPASS
  • Suitability for operation: RESIDENTIAL
  • Certificate of suitability: UL

Categories

Overview

UPC 04089200106
Item Long Description Siemens Low Voltage Talon Meter Sockets Residential - Talon Meter Sockets UAS8/9 Aluminum are Residential Enclosures Single-Family M etering. Type UAS8/9 Features NO BYPASS Application RESIDENTIAL Std UL V. Rating 300V A. Rating 100A Phase1 OR 3 PHASE Size 5.0 x 17.2 x 30.8 No Of Cutouts 13 Cutout Size 2 x 2.750, 9 x(1, 1-1/4, 1-1/2, 2), 2 x (1/2, 3/4, 1, 1-1/4, 1-1/2) Cable Entry OH Terminals 5. Surface mounting. Operating Temperature Avg AMBIENT Enclosure AL
GTiN 00040892001068
Width 17.2 in
Size 5.000X17.200X30.800
Operating Temperature Average Ambient
Voltage 300 Volt
Type UAS8/9
Number of Holes 13 Hole
Applications RESIDENTIAL
Depth 30.8 in
Height 5 in
Family Brand Name Siemens
Number of Phases 1,3 Phase
Amperage 100 Amp
Cable Entry OH
Enclosure ALUMINUM
