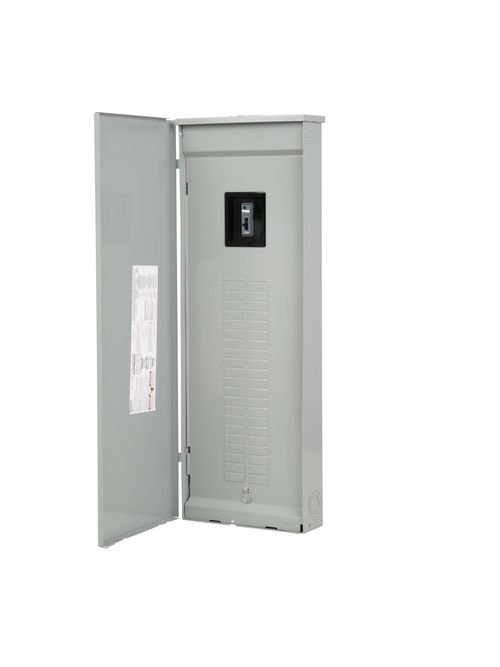

S-A SW4260B3200 ES LC MB 42S/60C 3P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$655.20/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # SW4260B3200
North Coast Part # 761586

Features

  • A 3-phase, 120/240-Volt, 200-Amp main breaker load center with 42-spaces/60-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 208 V
  • Configuration of the busbars: ALUMINUM BUS
  • Phase number: 3
  • Mounting type: FLUSH / SURFACE
  • Suitability for operation: RESIDENTIAL AND LIGHT COMMERCIAL ELECTRIC DISTRIBUTION
  • Number of circuits in a trunking unit: 60
  • Design of the housing: TYPE 3R
  • Size of the circuit-breaker: 200A
  • Number of width units for installation width: 42
  • Product brand name: SIEMENS
  • Product type designation: ES SERIES ASSEMBLED LOAD CENTER
  • Special product feature: GREY TRIM
  • Product sub brand name: LOAD CENTERS
  • Switching capacity current acc. to EN 60898 rated value: 22000 A

Overview

UPC 04089279360
GTiN 00040892793604
Size 3380.9375
Voltage 120/240 Volt
Applications RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Mounting Type FLUSH / SURFACE
Family Brand Name Siemens
Circuit Breaker Type 200A
Number of Phases 3 Phase
Amperage 200 Amp
Cover Type ES Series
Number of Spaces 42
Bus Rating ALUMINUMBUS
Interrupt Rating 22000 A
Enclosure TYPE3R
Sub Brand UL
Type ESSERIESASSEMBLEDLOADCENTER
Cable Size N/A
