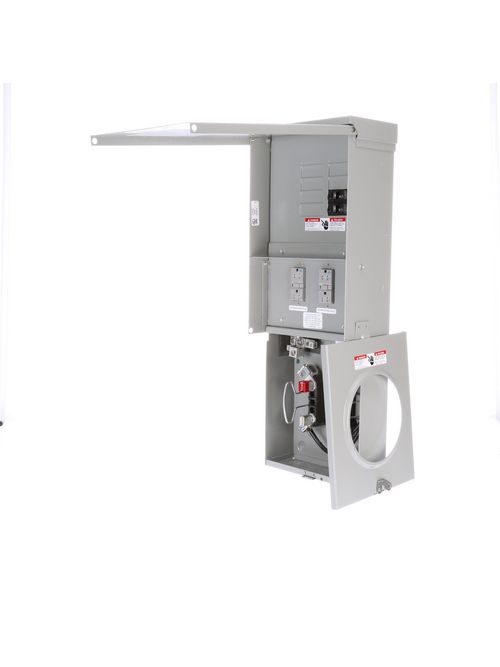

S-A TL77RB TAL POP 2(5-20R2G) RL BO
Product image thumbnail 0
Product image thumbnail 1
$463.68/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # TL77RB
North Coast Part # 1006264

Features

  • Includes two 20 Amp duplex receptacles
  • Bottom fed, ringless type meter socket
  • Surface or pole mount with meter provision
  • Elevated cover with padlock prevents unauthorized use
  • Receptacles protected by Siemens circuit breakers
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
  • Contact local utility to confirm meter socket approval

Specifications

  • Certificate of suitability: UL
  • Suitability for operation: TEMPORARY POWER
  • Product brandname: TALON

Overview

UPC 04089298986
Item Long Description Talon's line of power outlet panels are designed to meet the demands for temporary power at construction sites and recreational vehicle parks. For construction site applications, power outlet panels are installed for temporary use only until electrical power is available at the site. Recreational Vehicle parks use power outlet panels on a permanent basis as a power source for the RV's distribution system. A wide variety of configurations are available to address almost any application. Design options include surface (pole mount) and pedestal mount construction, with or without meter socket provisions, and top or bottom feed.
GTiN 00040892989861
Size 5.700X9.900X28.000
Operating Temperature Average Ambient
Voltage 120/240 Volt
Type MAIN LUGS
Applications TEMPORARYPOWER
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 125 Amp
Cable Entry BOTTOM FEED
Enclosure STEEL
