S-A WB1600T POWMOD SKNY WB 600A 1PH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,055.30/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # WB1600T
North Coast Part # 1891779

Specifications

  • Certificate of suitability: UL
  • Short-circuit current rating: 65000 A
  • Ampacity: 600 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Phase number: 1
  • Suitability for operation: MAIN DISCONNECT FOR MODULAR METERING
  • Mounting type: SURFACE / SIEMENS QuickRoll
  • Design of the housing: NEMA 3R
  • Product component: 600A LXD6 FRAME BREAKER (LXD63B600) INSTALLED
  • Product brand name: SIEMENS
  • Product type designation: CIRCUIT BREAKER MAIN DISCONNECT
  • Connector type: MECHANICAL LUGS / SIEMENS QuickConnect
  • Special product feature: INSTALLED LINE SIDE LUGS (LK12500) WIRE RANGE: 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL)
  • Product sub brand name: POWER MOD

Overview

UPC 80476656925

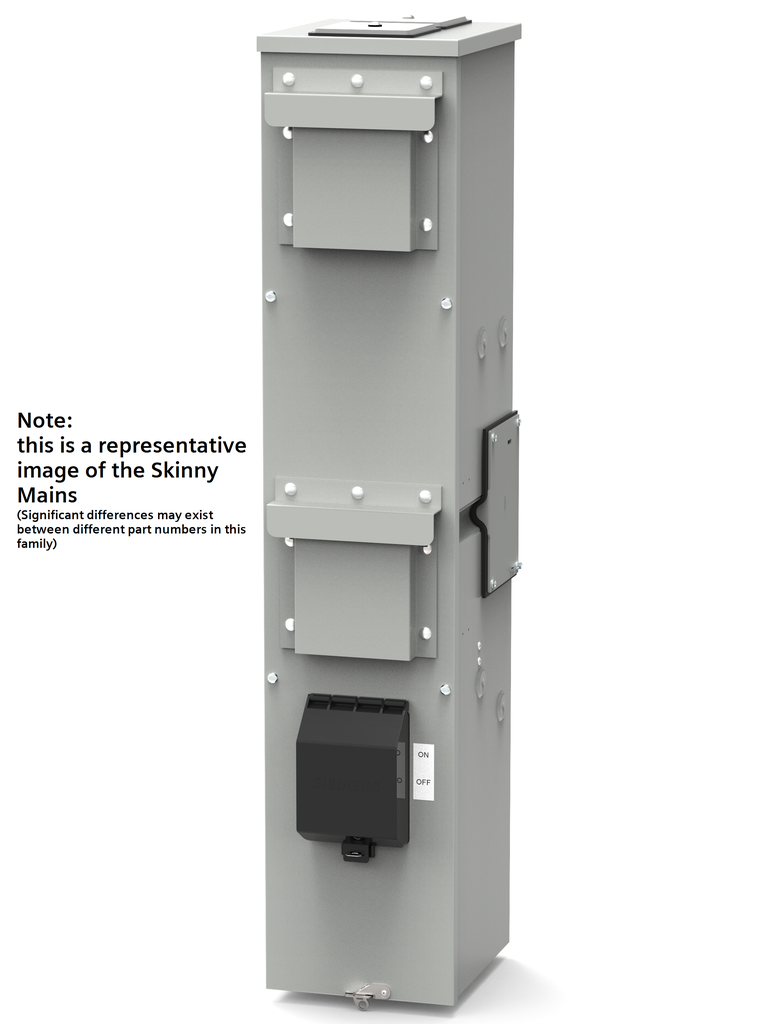

Item Long Description SIEMENS LOW VOLTAGE POWER MOD WB NARROW (SKINNY) CIRCUIT BREAKER MAIN. 600A MODULE FOR 1-PHASE 3-WIRE 120/240V SYSTEMS. INTERRUPT (65KAIC AT 120/240V). SPECIALFEATURES TOP FEED, NEMA TYPE 3R ENCLOSURE. FACTORY INSTALLED LINE SIDE LUGS (LK12500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). 600A 2-POLE LXD6 FRAME BREAKER (LXD62B600) INSTALLED.
GTiN 00804766569258
Mounting Type SURFACE / SIEMENS QuickRoll
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 600 Amp
Type 600ALXD6FRAMEBREAKER(LXD63B600)INSTALLED
Applications MAINDISCONNECTFORMODULARMETERING
TC Connection MECHANICALLUGS/SIEMENSQuickConnect
Enclosure NEMA3R
Sub Brand POWERMOD
