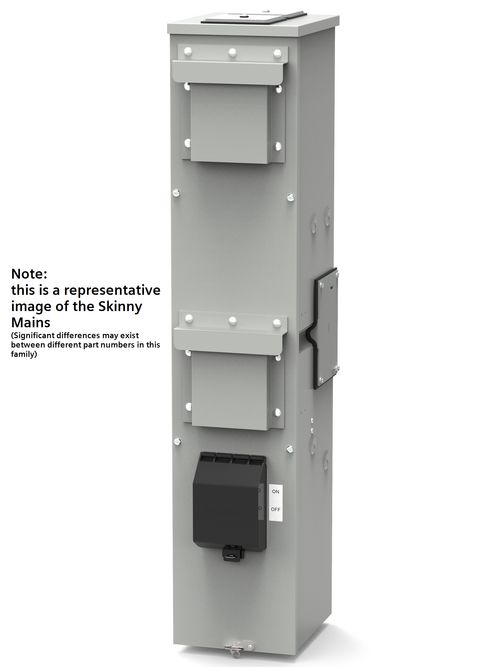

S-A WBM11200B POWMOD SKNY WB 1200A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,576.88/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # WBM11200B
North Coast Part # 1685461

Specifications

  • Certificate of suitability: UL
  • Short-circuit current rating: 65000 A
  • Ampacity: 1200 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Phase number: 1
  • Suitability for operation: MAIN DISCONNECT FOR MODULAR METERING
  • Mounting type: SURFACE / SIEMENS QuickRoll
  • Design of the housing: NEMA 3R
  • Product component: 1200A SND6 FRAME BREAKER (SND6A1200LI) INSTALLED
  • Product brand name: SIEMENS
  • Product type designation: CIRCUIT BREAKER MAIN DISCONNECT
  • Connector type: MECHANICAL LUGS / SIEMENS QuickConnect
  • Special product feature: INSTALLED LINE SIDE LUGS (LK14500) WIRE RANGE: 1/0AWG - 500KCMIL (CU/AL)
  • Product sub brand name: POWER MOD

Categories

Overview

UPC 80476656962
GTiN 00804766569623
Mounting Type SURFACE / SIEMENS QuickRoll
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 1200 Amp
Type 1200ASND6FRAMEBREAKER(SND6A1200LI)INSTALLED
Applications MAINDISCONNECTFORMODULARMETERING
TC Connection MECHANICALLUGS/SIEMENSQuickConnect
Enclosure NEMA3R
Sub Brand POWERMOD
