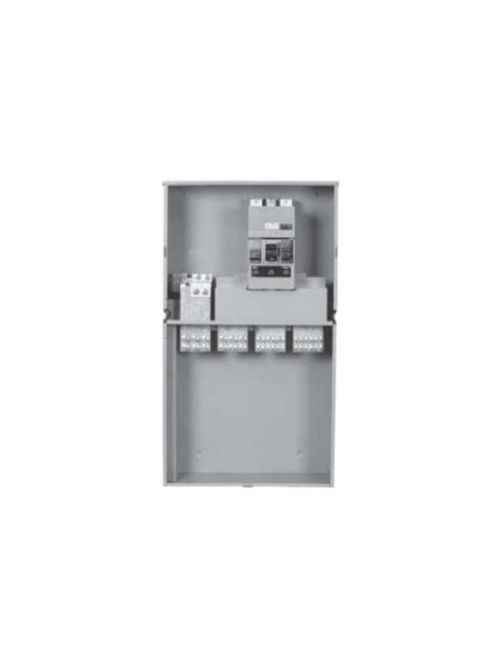

S-A WEB1800B POWMOD WEB 800A 1PH 3R
$3,706.91/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # WEB1800B
North Coast Part # 601379

Specifications

  • Certificate of suitability: UL67 / EUSERC COMPLIANT
  • Ampacity: 800 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: THRU-BUS
  • Mounting type: SURFACE / SIEMENS QuickRoll
  • Suitability for operation: CIRCUIT BREAKER PULLBOX FOR MODULAR METERING
  • Phase number: 1
  • Design of the housing: NEMA 3R
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: CIRCUIT BREAKER PULLBOX
  • Product sub brand name: POWER MOD
  • Depth [in]: 12.47 in
  • Height [in]: 59.34 in
  • Width [in]: 34.22 in

Overview

UPC 04089215023
Item Long Description MODMTR EUS CB 800A 1PH 3R 65K AIC
GTiN 00040892150230
Width 34.22 in
Size 7.000x11.000x23.000
Voltage 120/240 Volt
Type CIRCUITBREAKERPULLBOX
Applications CIRCUITBREAKERPULLBOXFORMODULARMETERING
Mounting Type SURFACE / SIEMENS QuickRoll
Depth 12.47 in
Height 59.34 in
Family Brand Name Siemens
Insulated? Yes
Number of Phases 1 Phase
Amperage 800 Amp
Cable Entry THRU-BUS
Enclosure NEMA3R
Sub Brand POWERMOD
