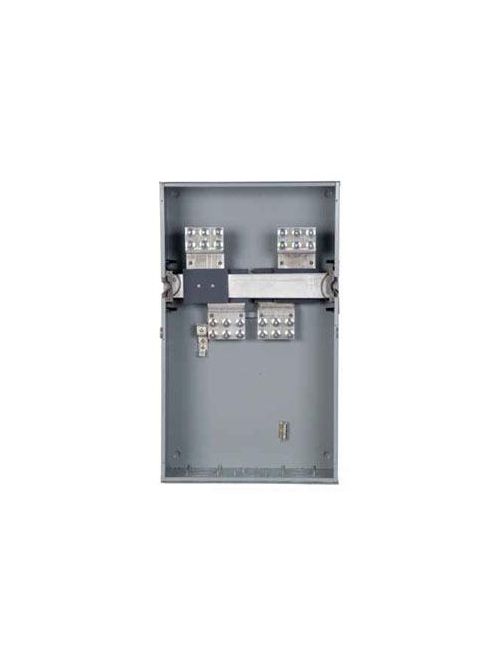

Siemens Industry WTB11600CU 120/240 VAC 1600 Amp 1-Phase 3-Wire 100 kA Meter Center Tap Box Module
$1,016.43/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # WTB11600CU
North Coast Part # 936471

Specifications

  • Certificate of suitability: UL67
  • Short-circuit current rating: 100000 A
  • Ampacity: 1600 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Phase number: 1
  • Suitability for operation: SERVICE ENTRANCE / SUB FEEDING
  • Mounting type: SIEMENS QuickRoll
  • Design of the housing: NEMA 3R
  • Product brand name: SIEMENS
  • Product type designation: WTB STANDARD TAPBOX
  • Special product feature: TYPE HD HUB
  • Product sub brand name: POWER MOD

Categories

Overview

UPC 04089215320
Item Long Description MODMTR TAPBOX 1600A 1PH 3R 100K TOP/BTM
GTiN 00040892153200
Length 3
Width 4
Voltage 120/240 Volt
Type MP-ET
Applications SERVICEENTRANCE/SUBFEEDING
Mounting Type SIEMENS QuickRoll
Height 6
Connection Type Plug-In
Family Brand Name Siemens
Number of Phases 1 Phase
TC Connection PLUG-IN
Amperage 1600 Amp
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Sub Brand POWERMOD
Enclosure NEMA3R
