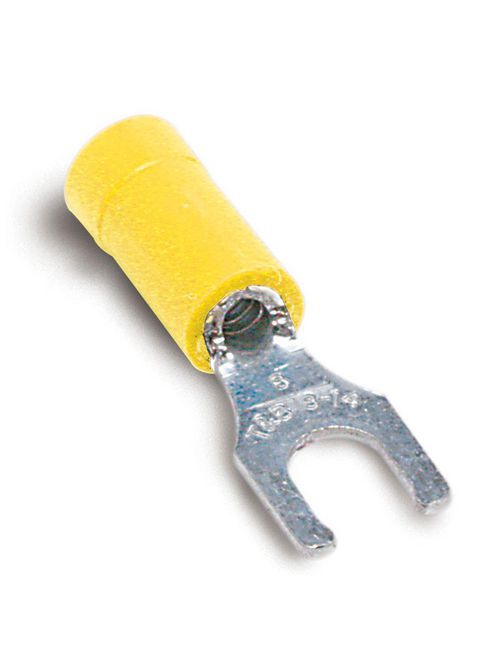

Thomas & Betts 10RC-10FL 12-10 AWG Wire Range #10 Bolt Hole Yellow Insulated Vinyl Locking Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$168.65/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 10RC-10FL
North Coast Part # 213943

Features

  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.

General

  • Finish: Electro Tin-Plated
  • Insulation Type: Insulated Vinyl
  • Terminal Series: RC
  • Color: Yellow
  • Wire Range: 12-10
  • Material: Copper
  • Stud Size: #10

Dimension Information

  • C (inches): .27
  • A (inches): 1.09
  • M (inches): .90
  • B (inches): .37
  • Stock Thickness: .04
  • Maximum Insulation (inches): .220

Specifications

  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C

Packaging

  • Package Width: 8.75
  • Outer Package: 250
  • Package Height: 7
  • Alternate Package Qty: RC2227
  • Package Type: Standard
  • T&B Sold in UOM: Each
  • Inner Package: 50
  • Order Multiple: 50
  • T&B Weight Per UOM: 5.63 lbs. per 1000
  • Package Length: 10.5

Application Support

Certifications


  • CSA
  • UL
  • RoHS Compliance: Yes

Overview

UPC 78621080726
GTiN 05414363136217
Finish Tin Plated
Width 3.3 in
Color Yellow
Voltage 600 Volt
Thickness .04 in
Insulation Type Insulated Vinyl
Material Copper
Stud Size #10
Terminal Type RC
Height 4.69 in
Wire Size 12-10 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Type Locking, Short Sleeve
Conductor Size 12-10 AWG
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
