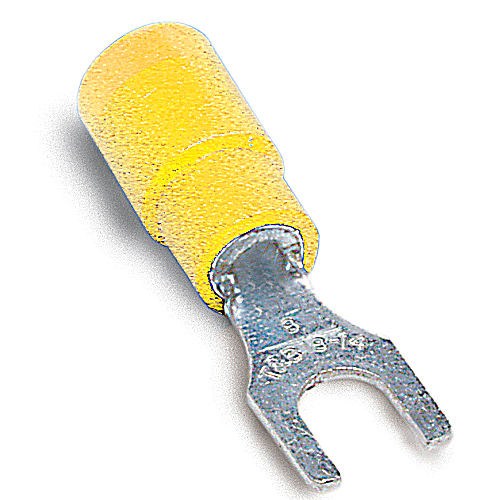

Thomas & Betts 10RC-10FX 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Expanded Entry Vinyl Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
$169.44/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 10RC-10FX
North Coast Part # 214094

Features

  • Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.

General

  • Material: Copper
  • Stud Size: #10
  • Wire Range: 12-10
  • Finish: Electro Tin-Plated
  • Insulation Type: Expanded Insulated Vinyl
  • Terminal Series: RC
  • Color: Yellow

Dimension Information

  • B (inches): .38
  • M (inches): .90
  • Stock Thickness: .04
  • Maximum Insulation (inches): .250
  • C (inches): .27
  • A (inches): 1.09

Specifications

  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V

Tooling

  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
  • Recommended Tool: ERG4001

Packaging

  • T&B Sold in UOM: Each
  • Outer Package: 250
  • Package Width: 9.1
  • Order Multiple: 50
  • Package Length: 10.25
  • T&B Weight Per UOM: 0.56 lbs. per 100
  • Package Height: 8
  • Inner Package: 50
  • Package Type: Standard
  • Alternate Package Qty: RC1157-250

Application Support

Certifications

  • UL
  • CSA
  • RoHS Compliance: Yes

Overview

UPC 78621080044
GTiN 05414363935797
Finish Tin Plated
Width 9.1 in
Color Yellow
Voltage 600 Volt
Type Short Sleeve
Thickness .04 in
Insulation Type Expanded Insulated Vinyl
Material Copper
Stud Size #10
Terminal Type RC
Conductor Size 12-10 AWG
Height 8 in
Wire Size 12-10 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material PVC
Flamability Class Rated V-0 Per UL94
Used With Round Conductors
Sub Brand Sta-Kon
