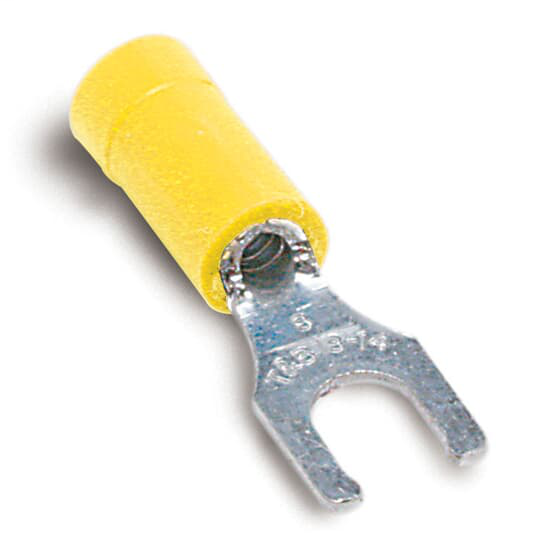

Thomas & Betts 10RC-14FL Vinyl-Insulated Locking Fork Terminal - #12-10, 1/4"bolt
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$206.65/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 10RC-14FL
North Coast Part # 217507

Specifications

Ordering

  • EAN: 5414363136231
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .006 lb2.721 g

Container Information

  • Package Level 1 Units: 50 piece
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 9.25 in235 mm
  • Package Level 2 Height: 9 in229 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 2500 piece
  • Package Level 3 Width: 8 in203 mm
  • Package Level 3 Height: 9.89 in251 mm
  • Package Level 3 Depth / Length: 12.1 in307 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Yellow
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Locking Fork Terminal
  • Special Functions: Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
  • Standards: UL E9809
  • UPC: 786210807287
  • Voltage Rating: 600 V
  • Wire Size: 12-10 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 78621080728
GTiN 05414363136231
Color Yellow
Voltage 600 Volt
Material Copper
Wire Size 12-10 AWG
Family Brand Name Thomas & Betts
Item Long Description Vinyl-Insulated Locking Fork Terminal, Length 1.09 Inches, Width .49 Inches, Maximum Insulation .220, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Finish Tin Plated
Type Locking, Short Sleeve
Stud Size 1/4 in
Conductor Size 12-10 AWG
Standard UL E9809
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
