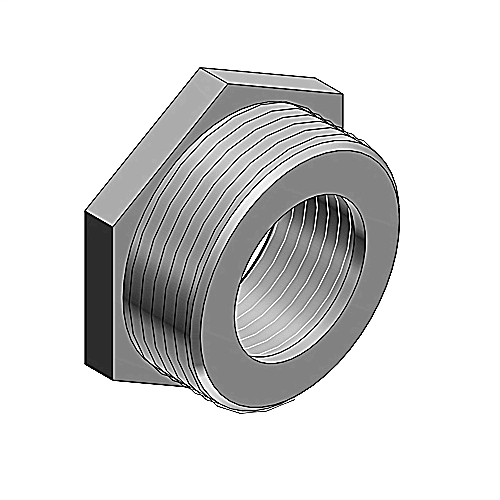

Thomas & Betts 1253 Female Reducer

Features

• Adapt any outlet to the next smaller size of conduit. Hex shoulder makes wrench tightening convienient.
• Suitable for use in hazardous locations where general purpose equipment is specifically permitted by the NEC; Class I, Div. 2; Class II, Div. 1 & 2, NEC 501-4(b); 502-4(a)(b); 503-3(a)(b)

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39131707 Electrical conduit coupling
• IGCC: 5548 Electrical conduit coupling
• Brand Name: T&B
• Type: Female Reducer
• Application: Female Reducer to Connect Two Different Sizes of Rigid/IMC Conduit
• Standard: UL E23018, CSA
• Trade Size: 1-1/2 to 1-1/4 Inch
• Outside Diameter: 2 Inch
• Material: Malleable Iron

European Specifications (ETIM)

• ETIM: EC000938 Enlargement/reducing ring
• Thread type inner thread: NPT
• Thread size inner thread (inch): 1 1/4 inch
• Thread type outer thread: NPT
• Thread size outer thread (inch): 1 1/2 inch
• Material: Other
• Nickel-plated: N

Packaging

• Inner Quantity: 25
• Inner Dimensions (inches): 6x5x4
• Outer Quantity: 50
• Outer Dimensions (inches): 8.7x5.8x8.7
• Weight Uom: 24 lbs. per 100
